Evertz 5600MSC Master Clock SPG Test Generator 2PS-STG-HTG-DARS-GPS-LTC 7751TG2
Add to Cart Add Make an Offer Offer
Fully Functional
Very Good
UPS Ground
2 - 5 days (most US locations)
UPS Expedited/Express
Cost varies (For International Locations)
Local pickup from store
Plus sales tax of 6% (PA State)

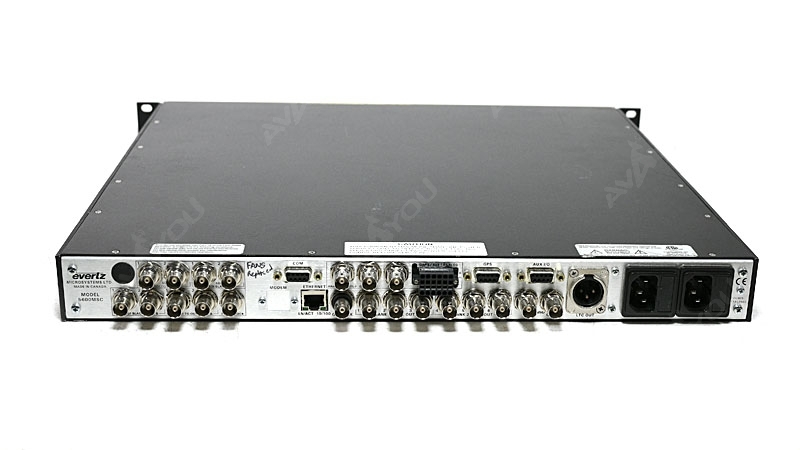

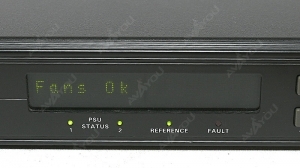

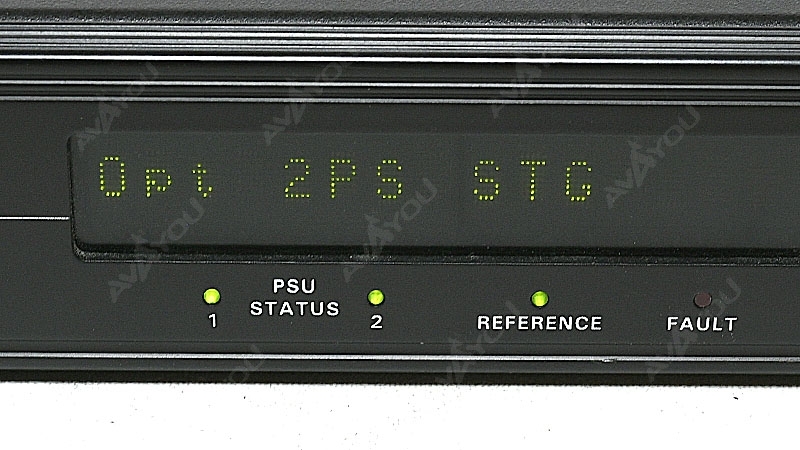

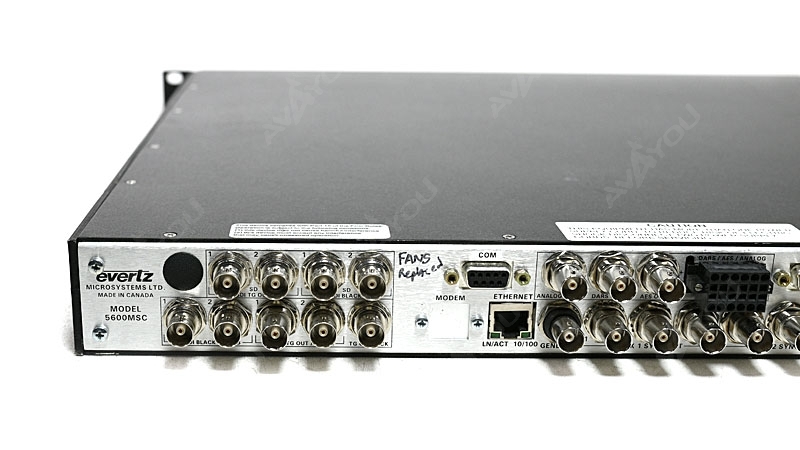

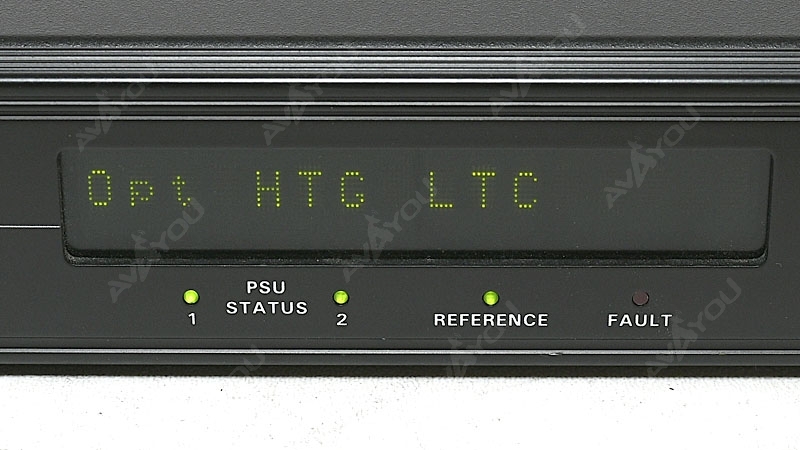

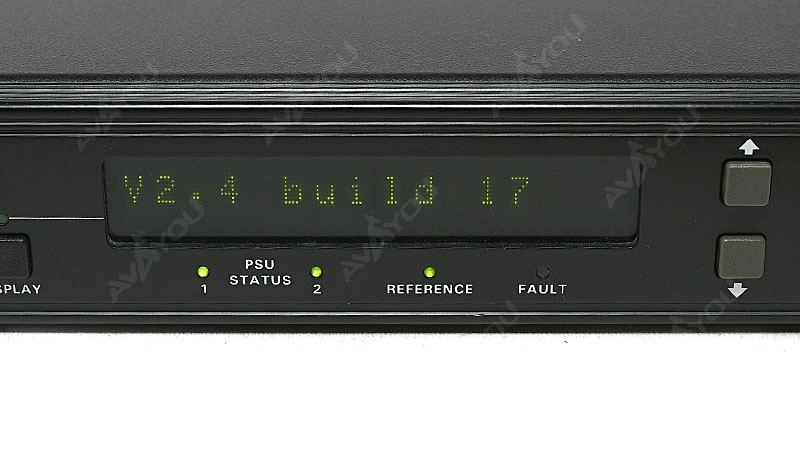

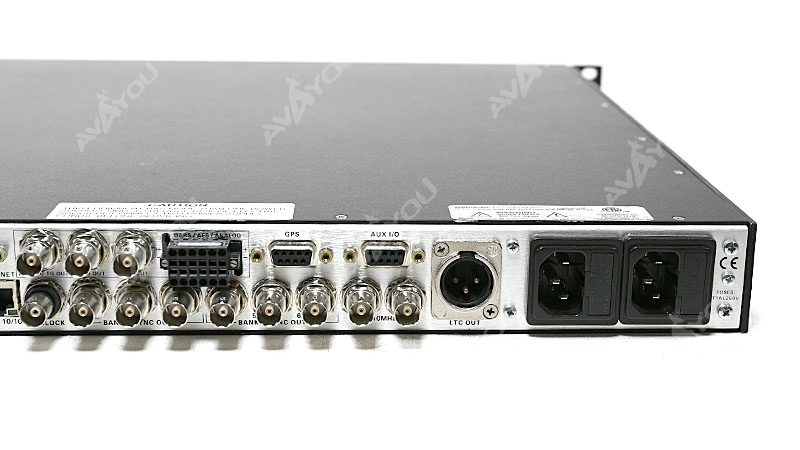

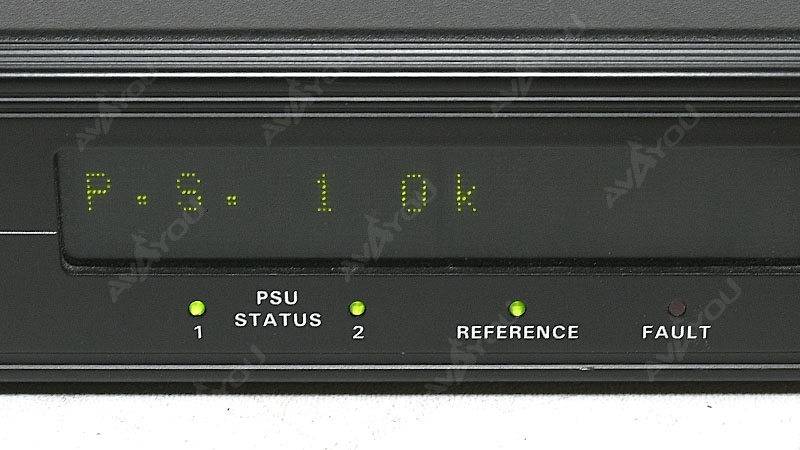

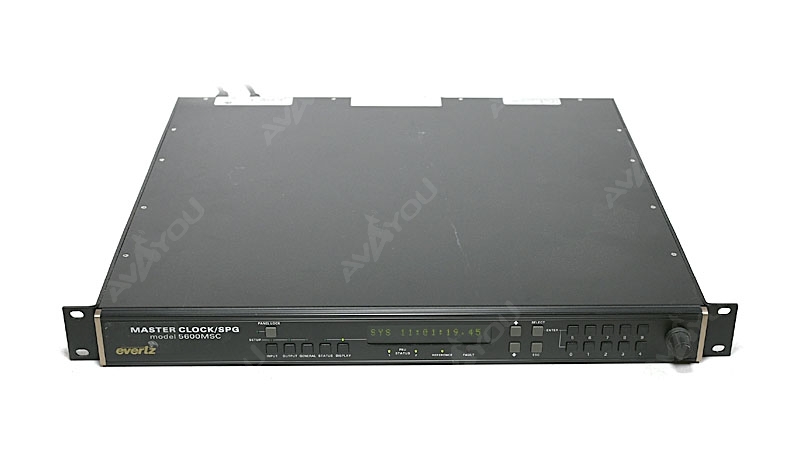

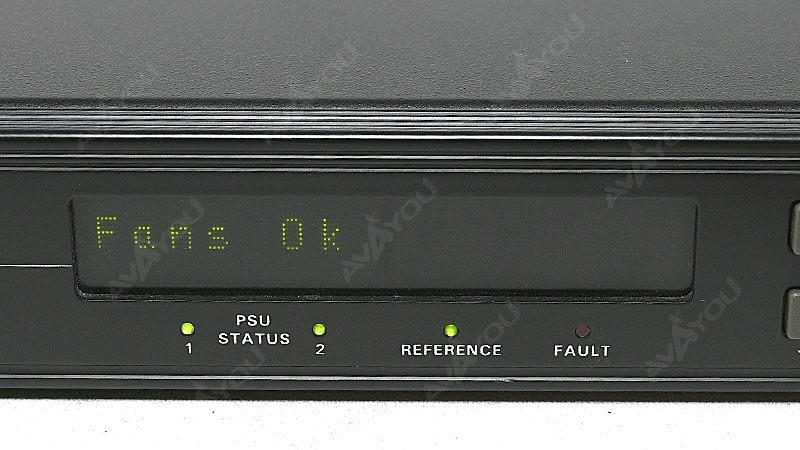

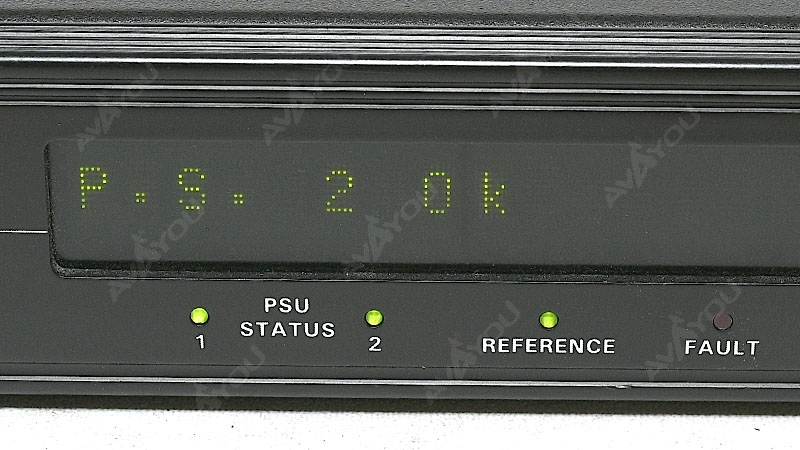

For sale is ONE (1) used Evertz master clock. The unit is in very good condition with some signs of previous use. Optional STG & HDTG Video Generators, Audio DARS and as well as GPS, Network, redundant power supplies (2PS) and LTC. Unit was cleaned and cooling fans were checked. Actual photos are showed. Power cords are not included unless mentioned in the description. The LCD works fine, photos show some glitches/missing letters.

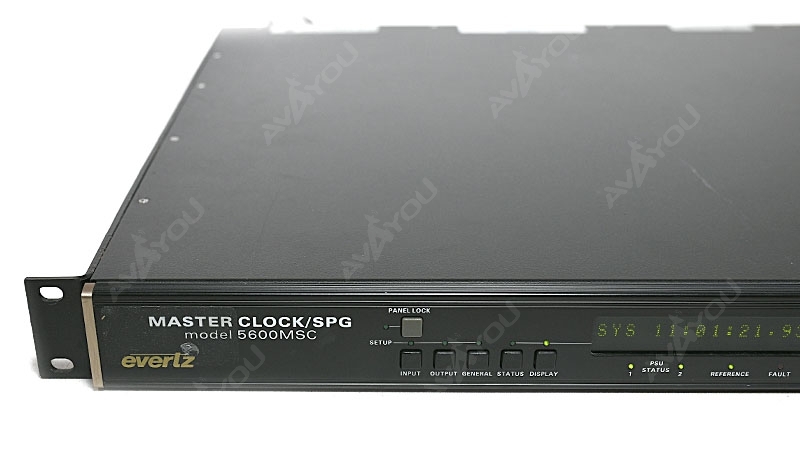

The 5600MSC Master Sync and Clock Generator, is both a broadcast quality master sync pulse generator (SPG) and a master clock. It provides all of the synchronizing signals needed in a 21st century TV station at the same time as solving the problem of locking the in-house master clock system to the master video sync pulse generator.

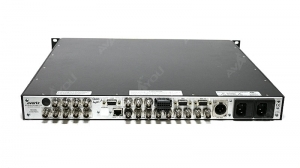

The SPG section provides two banks of three timeable outputs. These six BNC outputs may be configured to provide 6 independently timed color black (black burst) outputs or 6 independently timed HDTV tri-level sync outputs, or 3 of each signal type. Each color black output can optionally carry vertical interval time code (VITC) on a user specified set of lines.

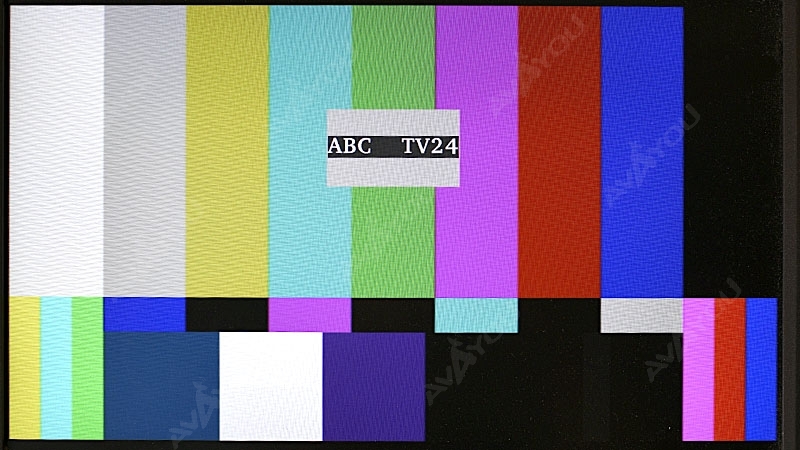

The HTG option provides two high definition SDI test signal outputs and two HD SDI black outputs.

  • 6 independently timeable programmable reference outputs
  • Bi-level or Tri-level outputs selectable
  • Reference loop input for video and 10MHz/5MHz references
  • Output frequency stability guaranteed better then 1.0 x 10-8 (or 0.01ppm)
  • Optional test generators available: STG, HTG included

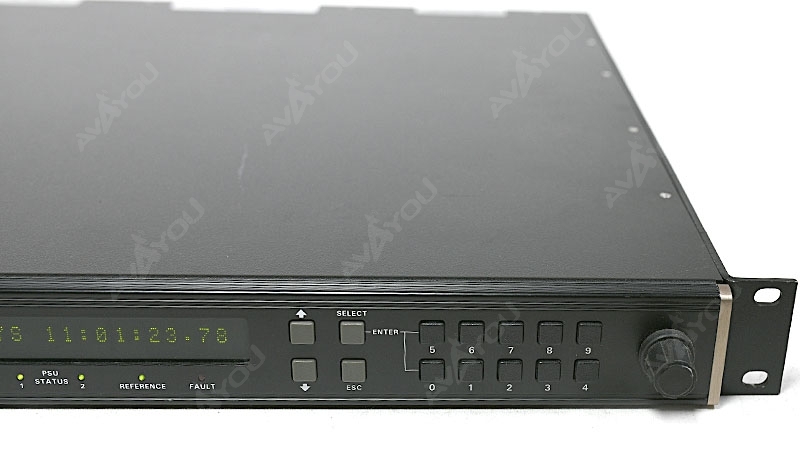

  • For 5600MSC, 16 character Alpha-numeric display, with 20 pushbuttons
