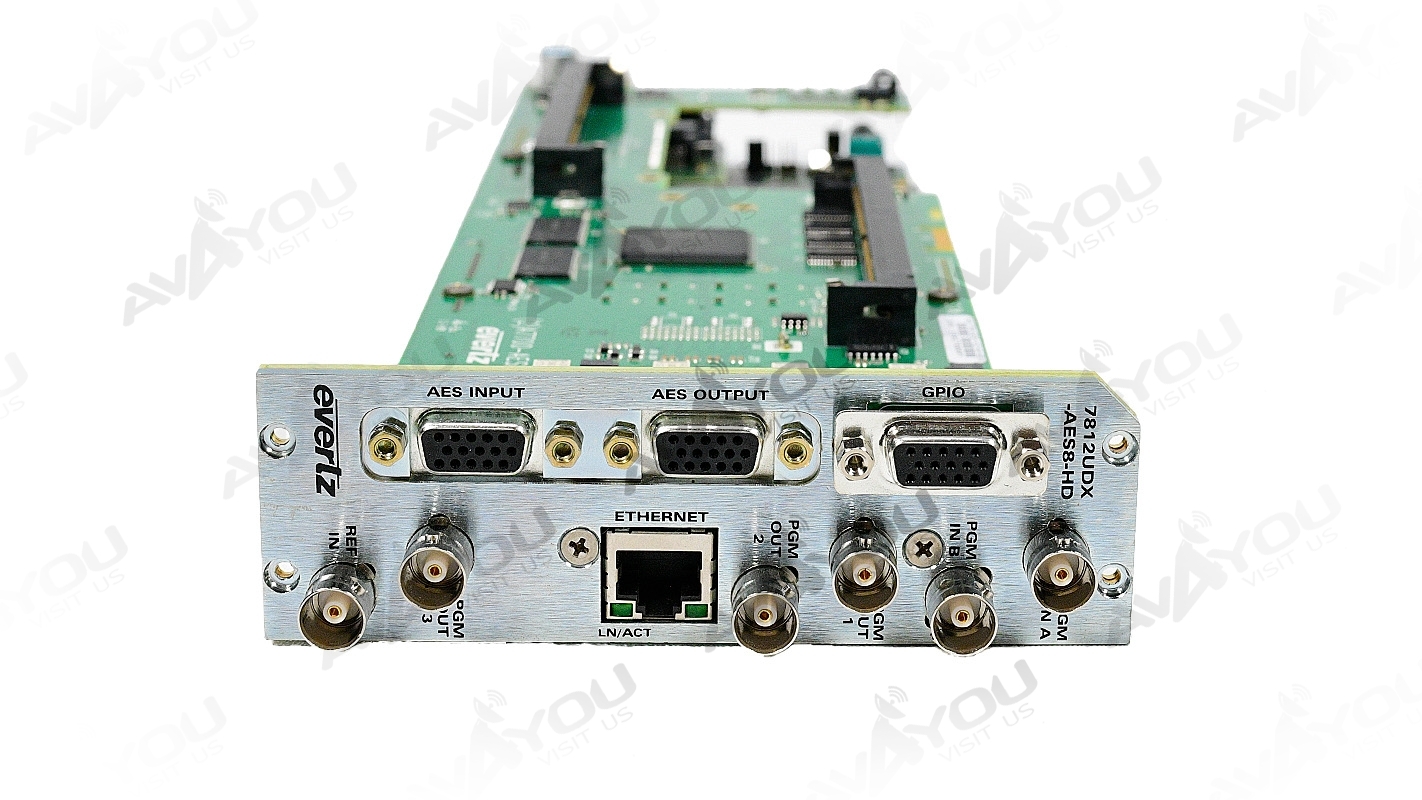

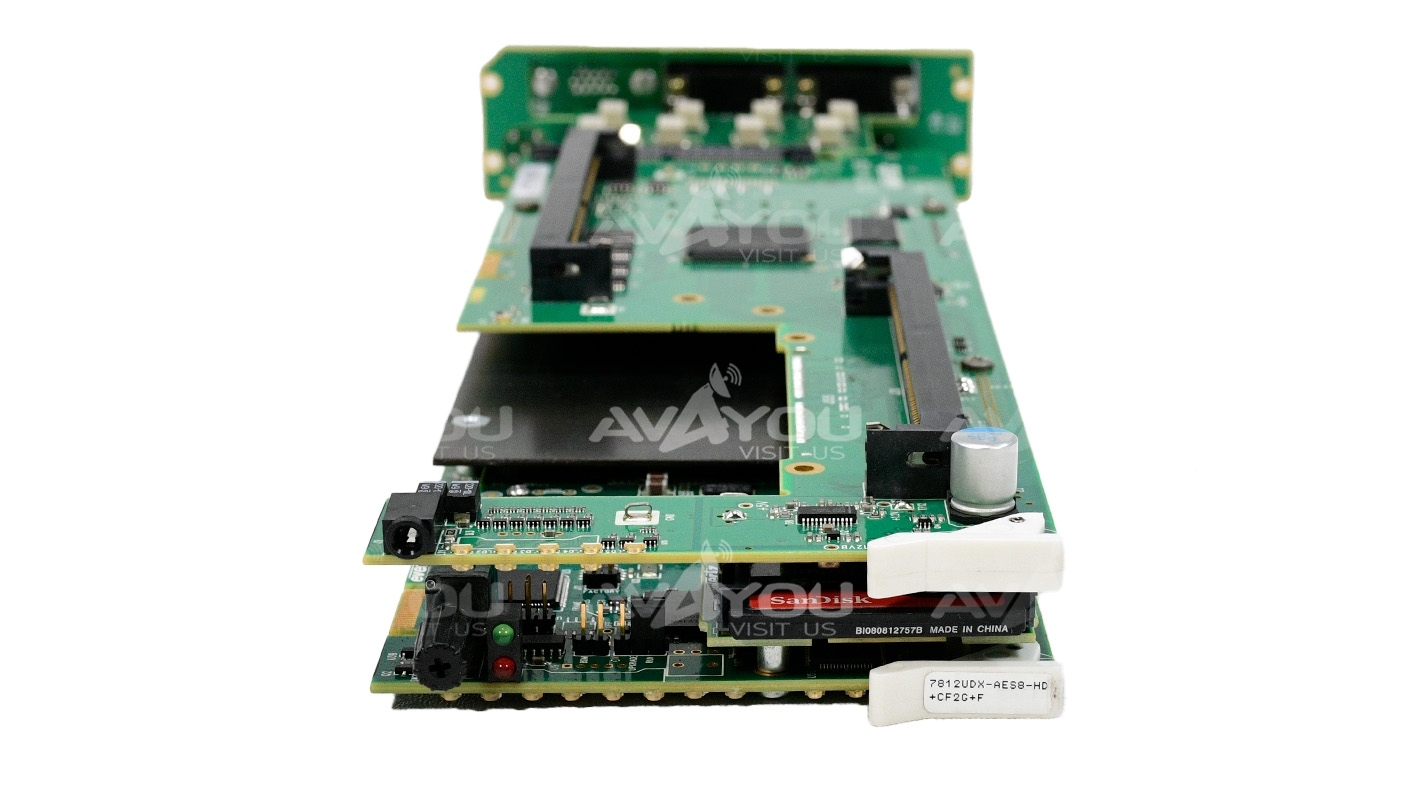

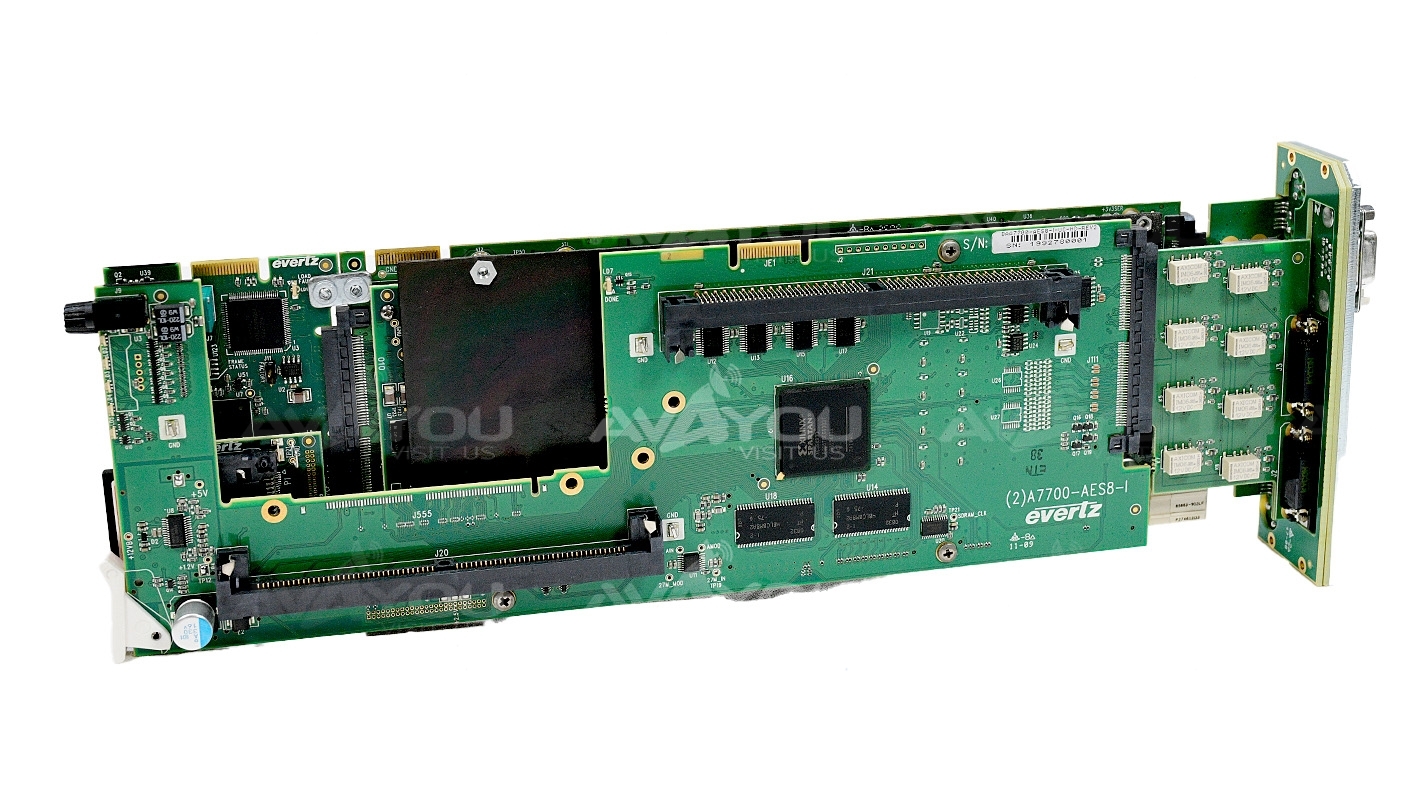

The Evertz 7812UDX-AES8-HD is a broadcast-quality up/down/cross converter modular card designed for the 7800FR series multiframe. It provides high-resolution video conversion between SD (SMPTE ST 259) and HD (SMPTE ST 292-1) signals with advanced noise reduction and de-interlacing technologies. The 7812UDX series incorporates Mosquito Noise Reduction (MNR) and Block Artifact Reduction (BAR) in addition to motion adaptive spatial-temporal (3D) noise reduction. The 7812UDX series also incorporates new de-interlacing technologies for superior resolution and artifact reduction. The 7812UDX series supports broadcast quality scaling and offers both standard and user defined ARC modes. AFD (SMPTE ST 2016) based steering of ARC modes and stamping AFD codes is fully supported. Transitions between AFD modes are frame accurate/glitch free. With the +F option, signals applied to PGM B IN can be keyed into image side panels. FILL inputs are frame synchronized so that pre-timing of FILL inputs is not required. With the +CF2G option, static or animated side panels can be stored locally and keyed into image side-panels.The 7812UDX series supports 16 channels of embedded audio with audio delay automatically matching video delay. Additional audio delay is available. Full audio proc is supported including per channel audio gain, channel swapping and inversion controls. Surround sound to stereo (Lt/Rt or LoRo) down-mixing is supported.

The -AES8 designation indicates specific support for discrete audio input/output.
