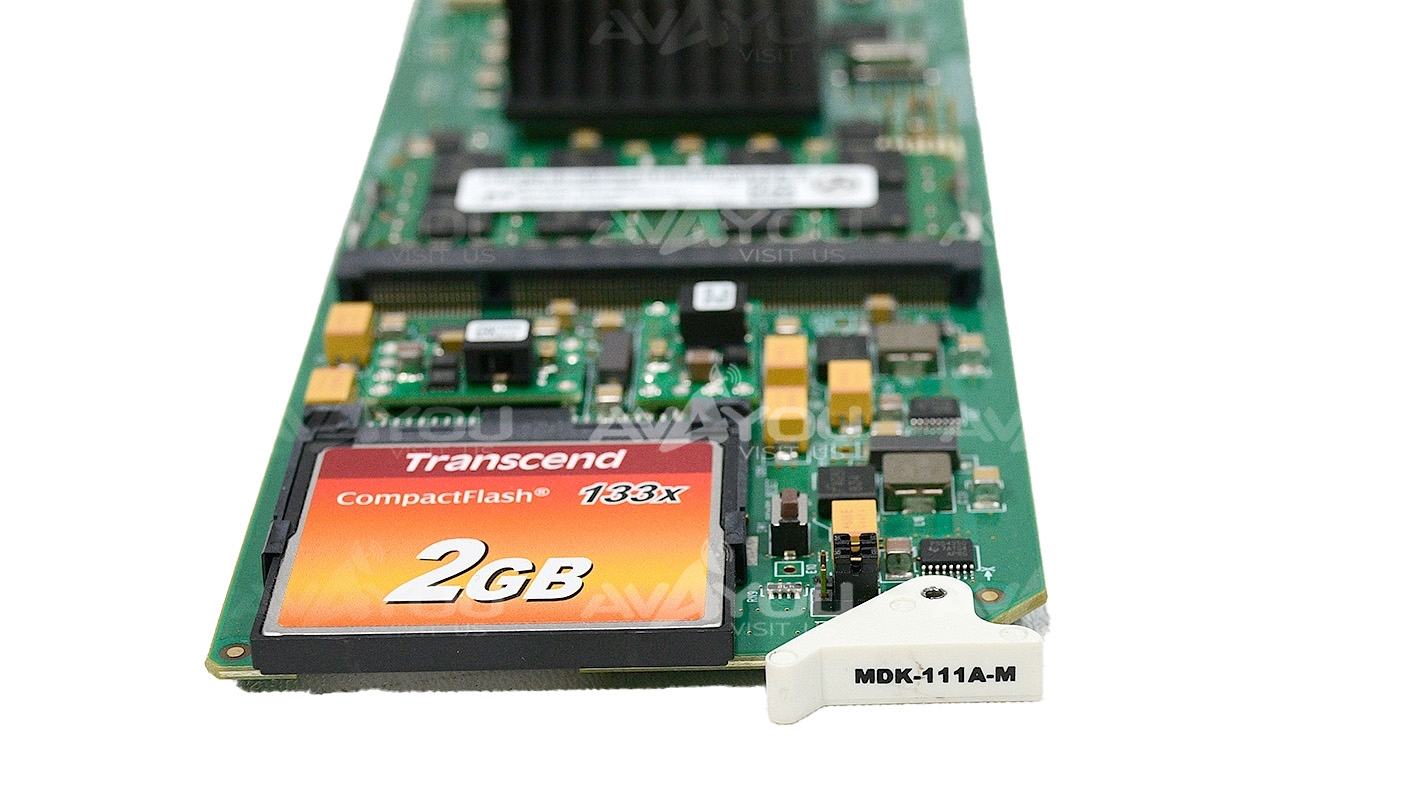

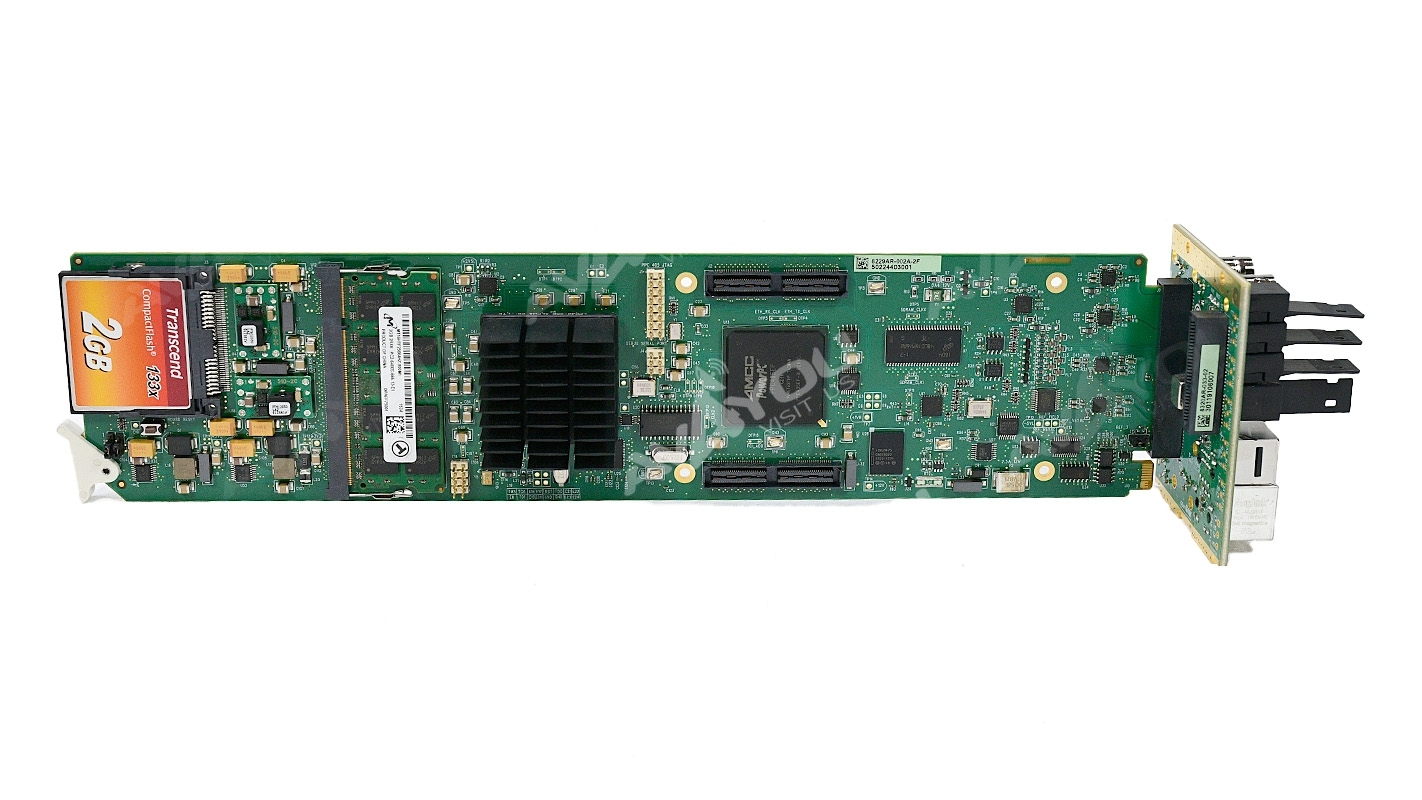

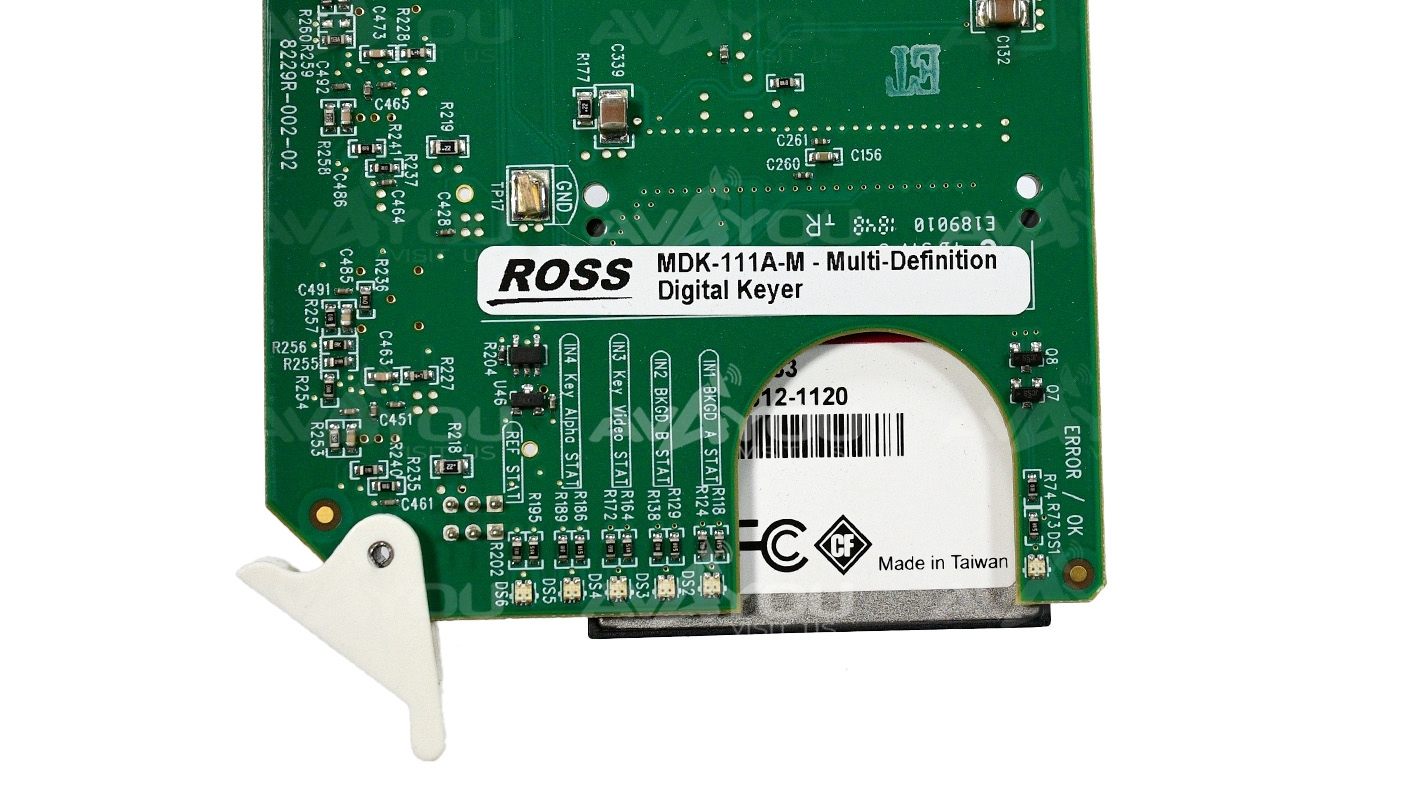

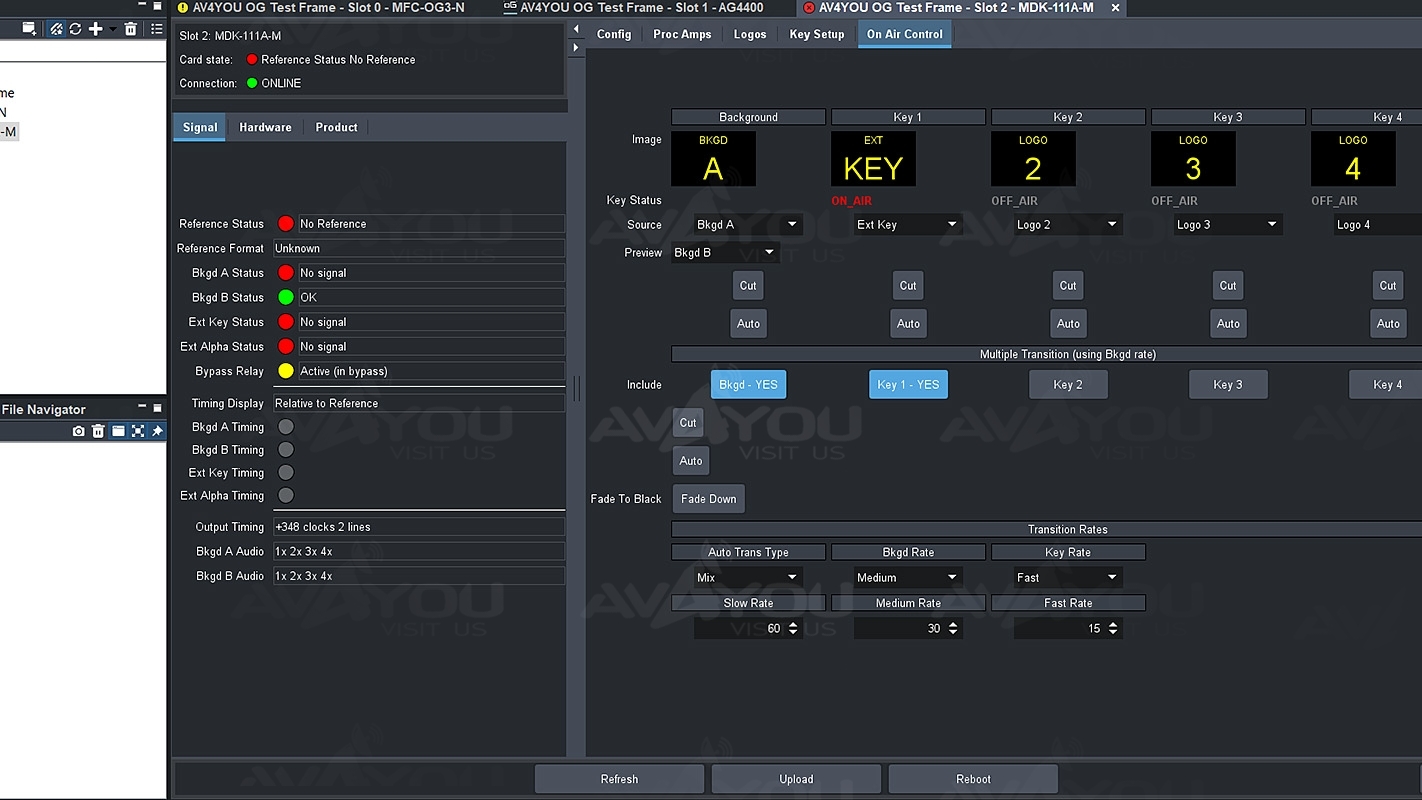

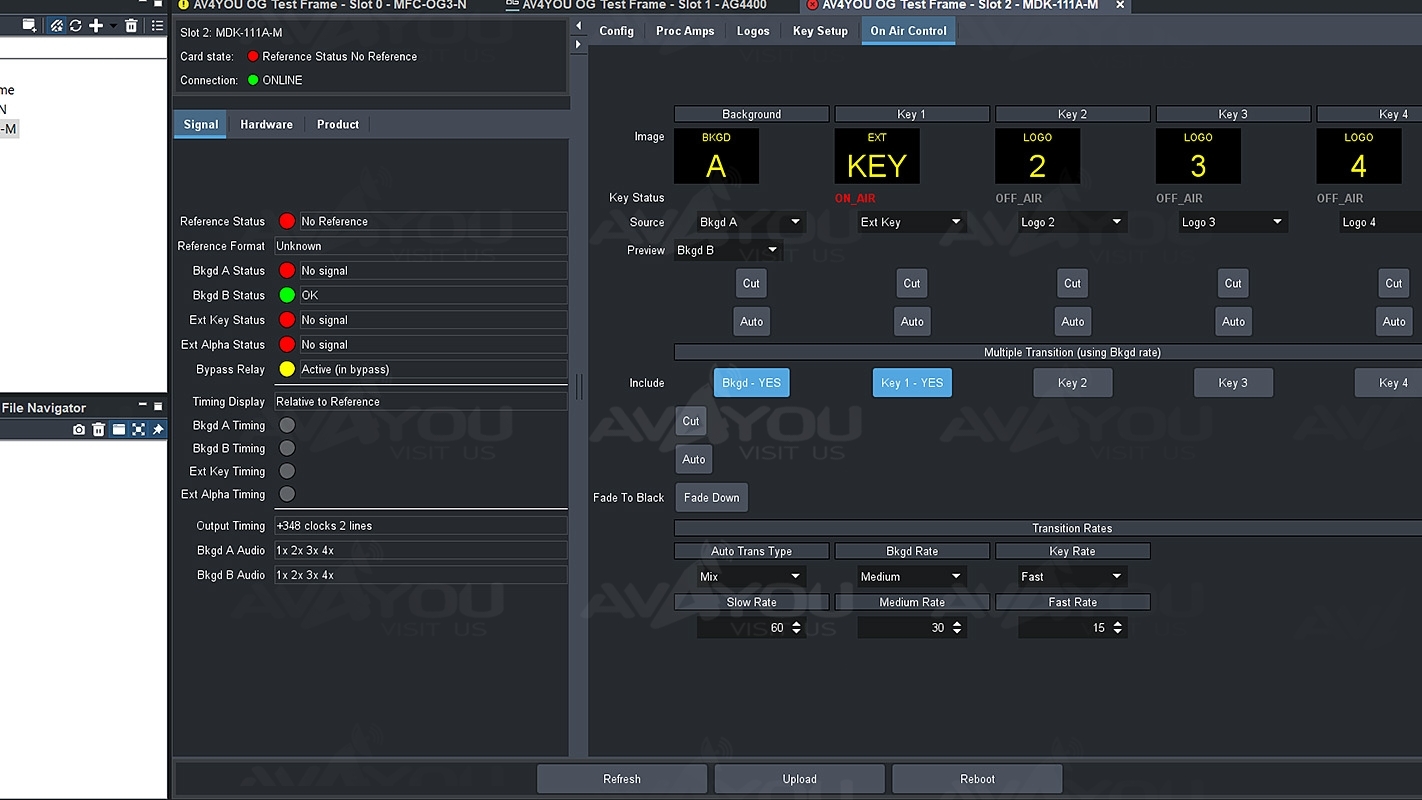

The MDK-111A-M is the most advanced HD / SD SDI single card mixer / keyer on the market. The multikeying function allows simultaneous compositing of both an external key source with up to 3 internally generated logo key sources plus background mixing. For example, the MDK-111A-M can key an external character generator like Ross Video's XPression, over the background video and then key up to 3 internally generated animated logos. Transition control to any layer; BKGD, external key, and / or internal keys is independently controllable. The internal key sources can be any size up to full-screen and can be positioned anywhere. This makes the insertion of trouble slides, content rating bugs, station logos and EAS simple and affordable.

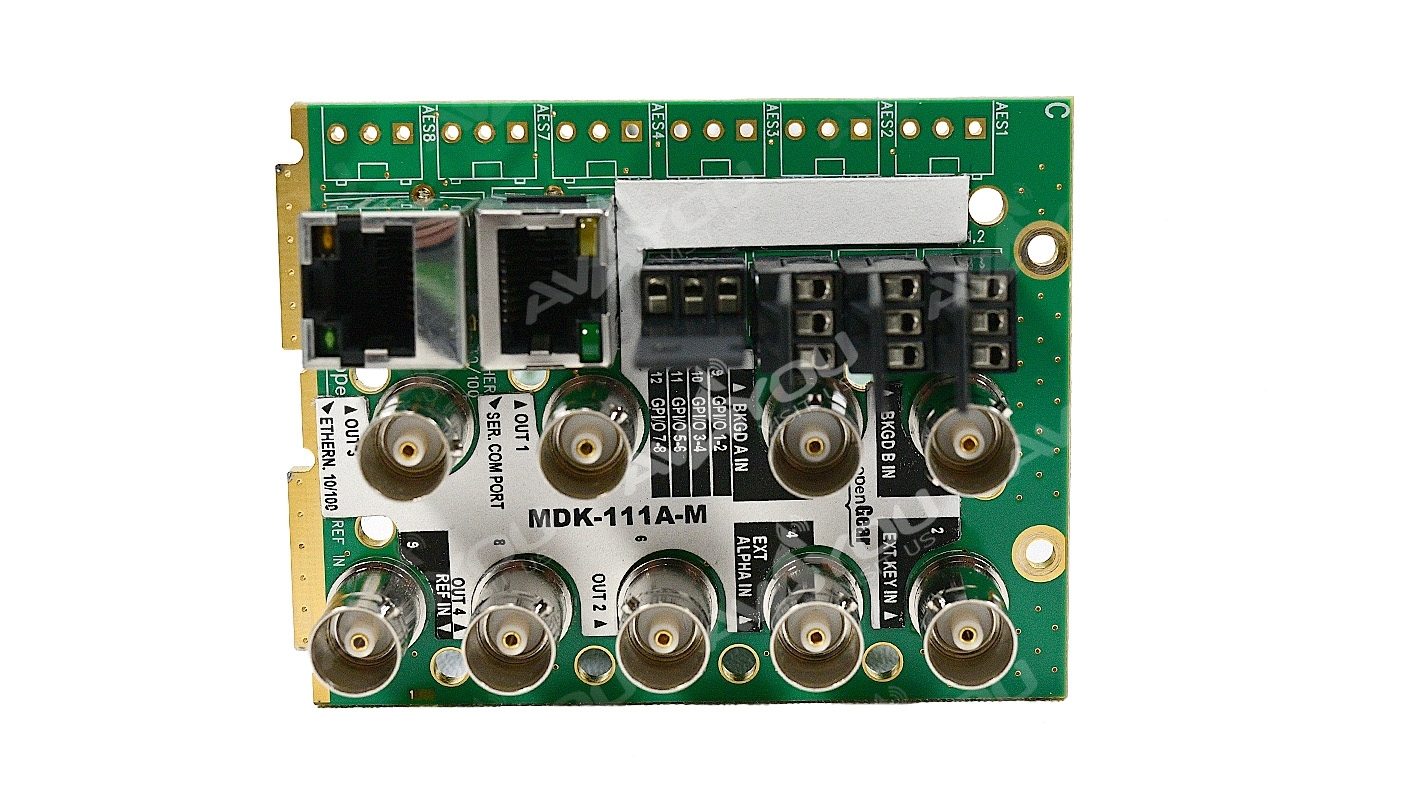

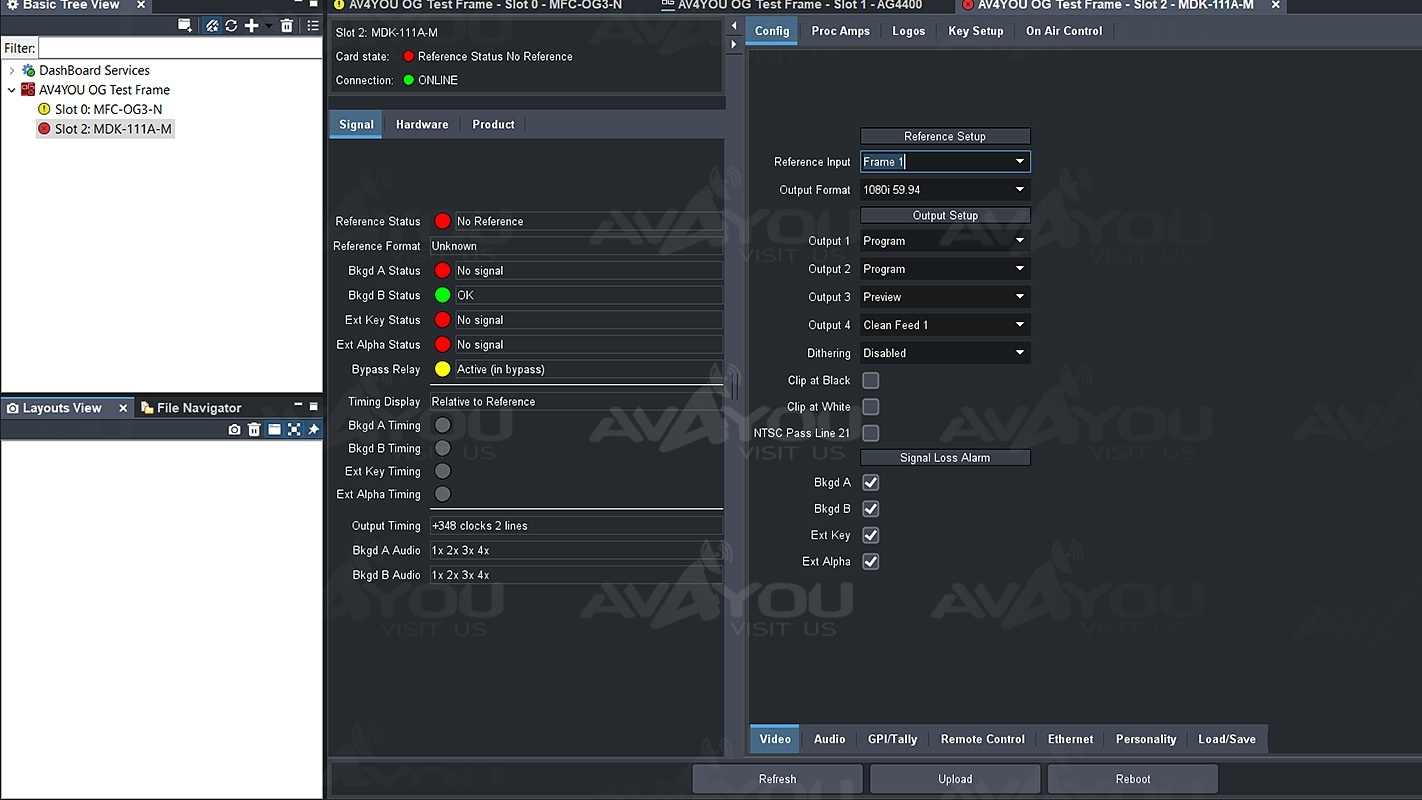

The MDK offers 4 configurable outputs with selections for PGM / PREVIEW and CLEAN. The look-ahead PREVIEW is ideal for live productions providing confidence in quality and accuracy of the next scene to go to air.

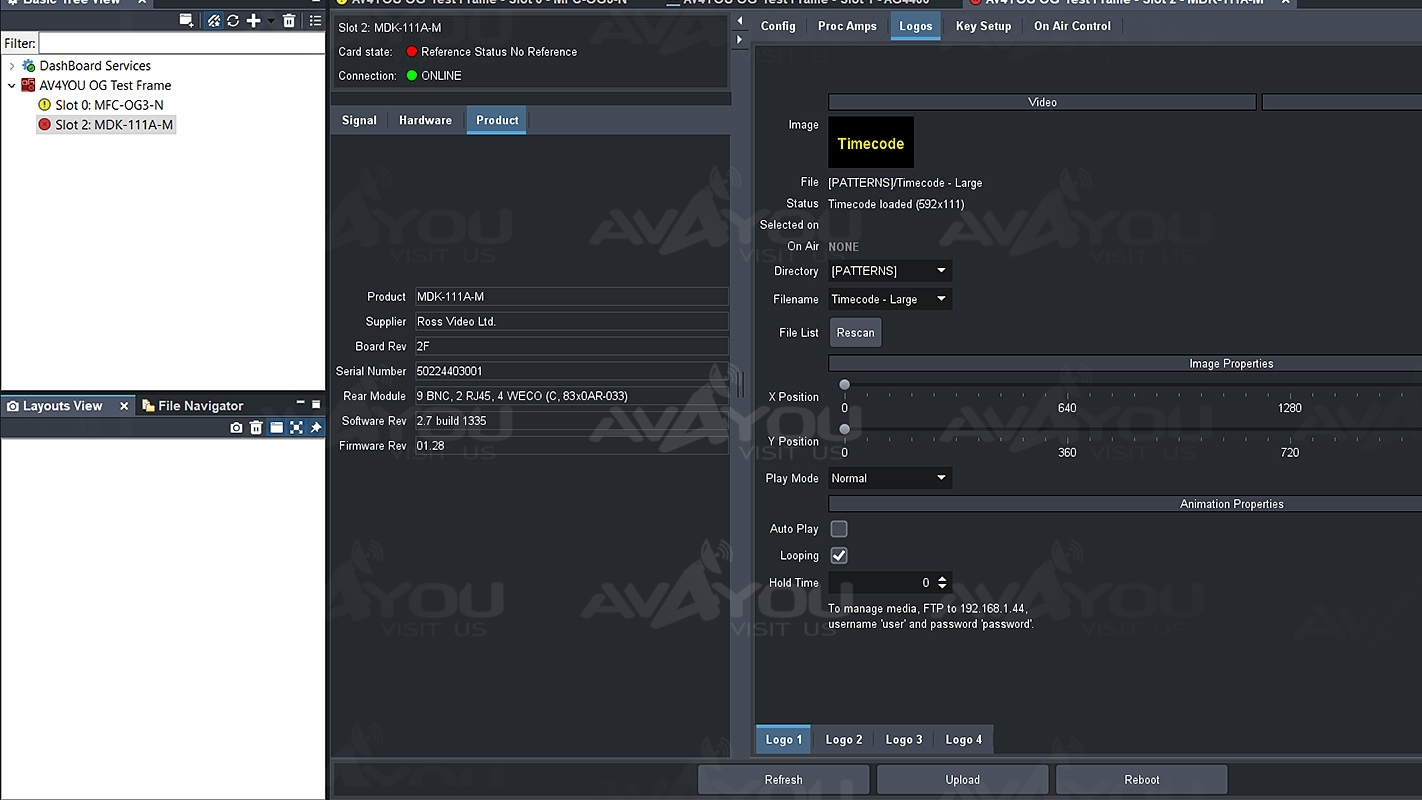

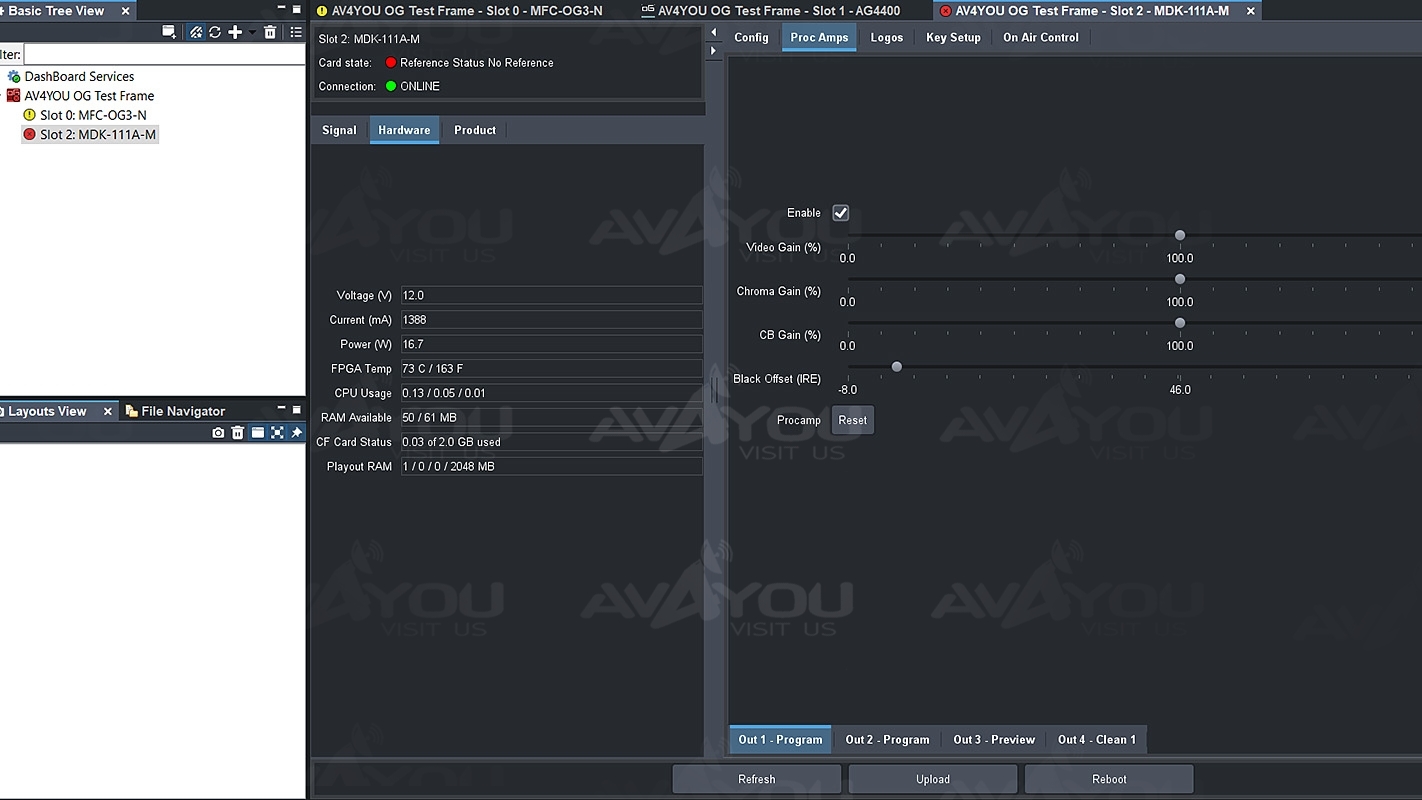

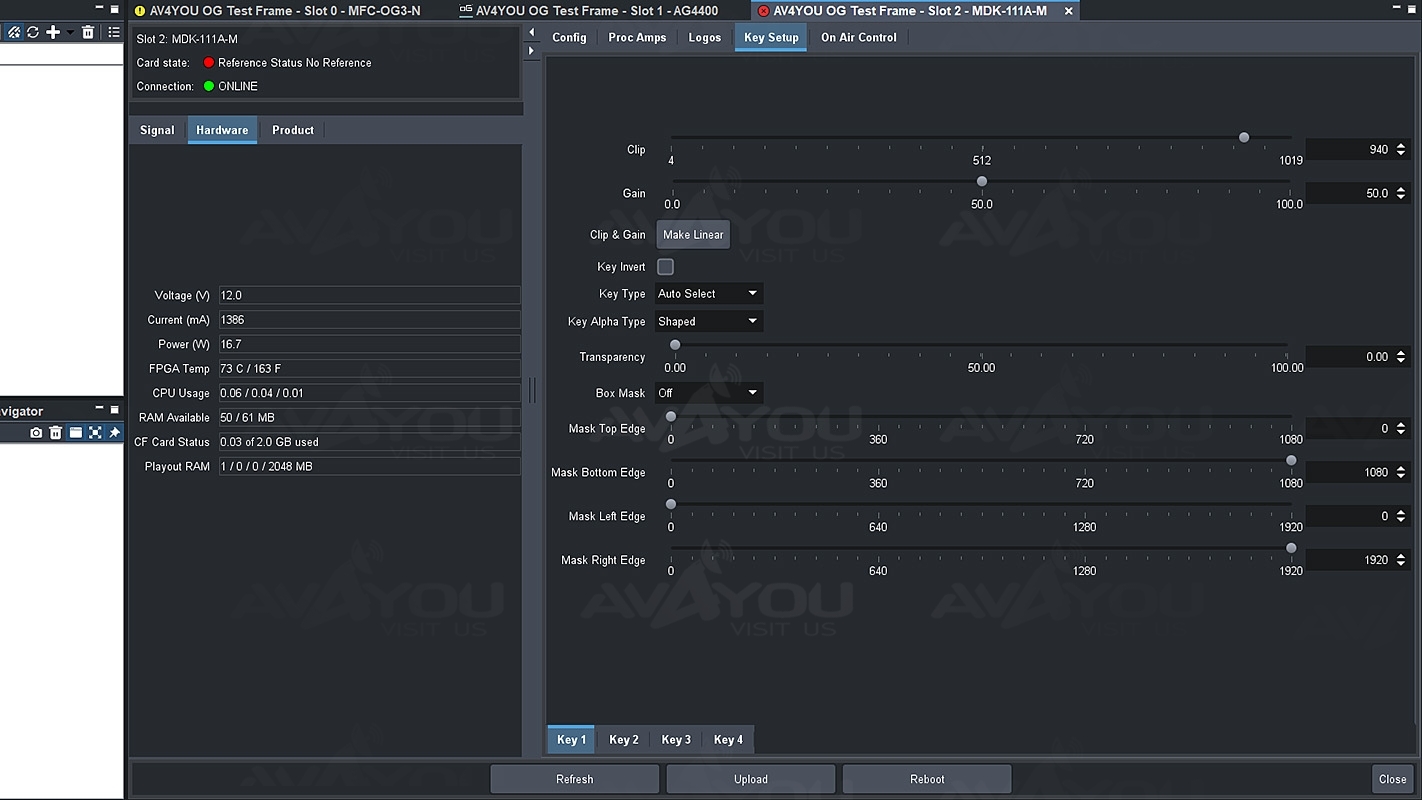

The MDK-111A-M offers a wide range of control with a total of 8 configurable GPI/O, M2100 serial interface and full DashBoard Control and Monitoring. The flexible control makes automating logo insertion simple anywhere in the program stream.
