Ross Open Gear SRA-8601A Dual 1x4 SD/HD/3G Reclocking Amplifiers - 2 Cards
Listed at $445.00 $423.00
Make:Ross
Model:SRA-8601A
SKU#5605
Add to Cart Add Make an Offer Offer
Functional:
Fully Functional
Cosmetic:
Excellent
UPS Ground
2 - 5 days (most US locations)
$0.00
UPS Expedited/Express
Cost varies (For International Locations)
Local pickup from store
Plus sales tax of 6% (PA State)
$0.00
$25.38

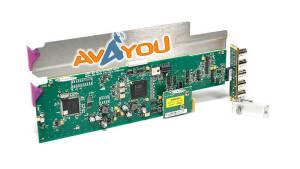

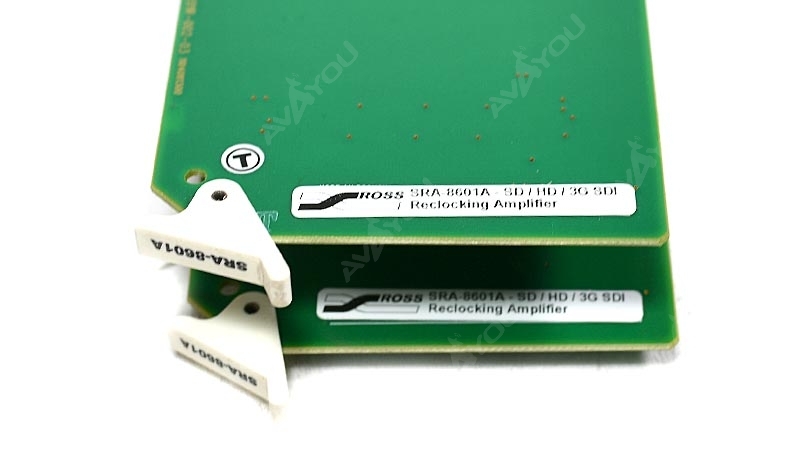

For sale is ONE (1) set of used Ross/open gear distribution amplifier. Two cards and one backplane are included. Dual 1x4 config, space saver. Each card is capable of 1x8 if you match it with a different backplane. Excellent condition. We have a few units for sale (1 per listing price). This is one of them. All others are in same condition.

The SRA-8601A is a Multi-Definition SDI distribution amplifier capable of equalizing and reclocking all common serial digital signals. With support for both standard-definition and high-definition signals, the SRA-8601A is the ideal universal SDI distribution amplifier. The SRA-8601A equalizes the incoming SDI signal, compensating for greater than 300m of cable at 270Mb/s, greater than 120m of cable at 1.485Gb/s, and greater than 80m of cable at 2.97Gb/s. The signal is then reclocked, with automatic rate detection for all popular data rates. LED indicators at the front of the card identify the presence of incoming video and the identified signal data rate.

  • 1x8 3Gb/s distribution amplifier
  • Equalizes and reclocks SDI signals of 270Mb/s, 1.485Gb/s, and 2.97Gb/s
  • Equalizes greater than 300m of Belden 1694A cable at 270Mb/s, greater than 120m of cable at 1.485Gb/s, or greater than 80m of cable at 2.97Gb/s
  • Automatic detection of incoming data rate
  • ED indicators for signal presence and data rate
  • Excellent input and output return loss
