Miranda GV HDA-3911 Single 1x7 3G/HD/SD/ASI DA Distribution Amplifier+ 391N-3SRP
Add to Cart Add Make an Offer Offer
Fully Functional
Very Good
UPS Ground
2 - 5 days (most US locations)
UPS Expedited/Express
Cost varies (For International Locations)
Local pickup from store
Plus sales tax of 6% (PA State)

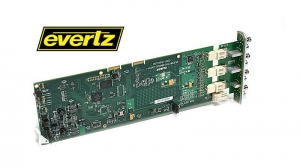

For sale is ONE (1) used HDA-3911 DA board in very good condition. Backplane included is 3SRP. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold. They may be different from one depicted in the photos

The HDA-1911 and HDA-3911 are 3G/HD/SD SDI video distribution amplifiers (DAs) that support a variety of compressed and uncompressed serial digital video signals. They provide up to nine reclocked outputs with automatic equalization for up to 200 meters (656 feet) of cable using Belden 1694A at 1.5 Gb/s and up to 100 meters (328 feet) at 3 Gb/s. They offer fiber connectivity, making it ideal for longer cable lengths. Critical applications protection is provided by a protection bypass relay available on selected rears. The HDA-1911 and HDA-3911 share the same feature set and specifications, except that HDA-1911 is a 2 RU card built for the Densité 2 frame while the HDA-3911 is a 3 RU card made for the Densité 3 frame series. Each product has its specific rears as illustrated in the Key Features section and in the ordering information.

  • One 3G/HD/SD SDI input
  • Seven 3G/HD/SD SDI outputs
  • Supports bit rates all the way up to 3Gb/s
  • Backup input available in single channel mode
  • Automatic format detection and cable equalization
