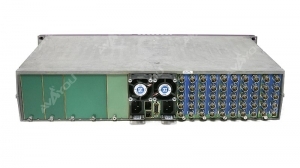

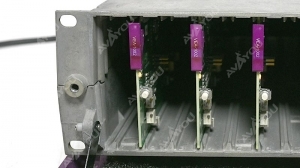

For sale is ONE (1) Miranda frame populated with 5x analog DA cards. Good working condition, just removed from the service. Frame has two power supplies plus CPU-ETH2 Frame controller. All corresponding backplanes are included. Cooling fans may need to be replaced for a 24h operation. There are some scratches and signs of use. Actual photos are showed. Power cords are not included unless otherwise mentioned.

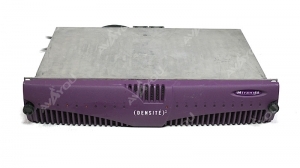

The 2 RU Densité 2 Frame can simultaneously process 3G, HD, SD and analog video, as well as AES and analog audio. Its front-opening frame features dual hot-swappable power supplies (PSUs) and fans. Modules for the air-cooled frame are also hot swappable, and replacement modules can be configured automatically. All modules, redundant PSUs and fans are monitored to deliver status via GPI or an Ethernet port. Front panel multicolor LEDs provide status reporting, while a controller card allows card adjustments from the front panel.

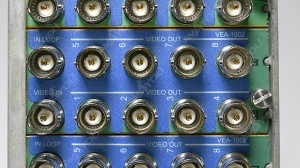

The VEA-1002 is an analog video distribution amplifier with eight outputs, providing equalization and differential input. The VEA-1002 will equalize up to 300m (984 ft.) of Belden 8281 cable. Gain and equalization are controlled from the card edge. Signal status is provided to indicate the input signal presence. The differential input provides rejection of hum and other artifacts on incoming signals.
