Ross openGear DRA-8204 Dual MD-SDI Reclocking Amplifier DA for OG3-FR
Add to Cart Add Make an Offer Offer
Fully Functional
UPS Ground
2 - 5 days (most US locations)
UPS Expedited/Express
Cost varies (For International Locations)
Local pickup from store
Plus sales tax of 6% (PA State)

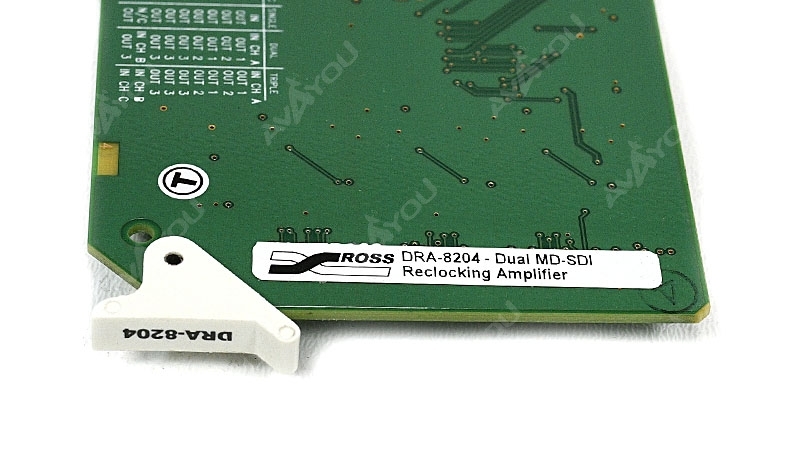

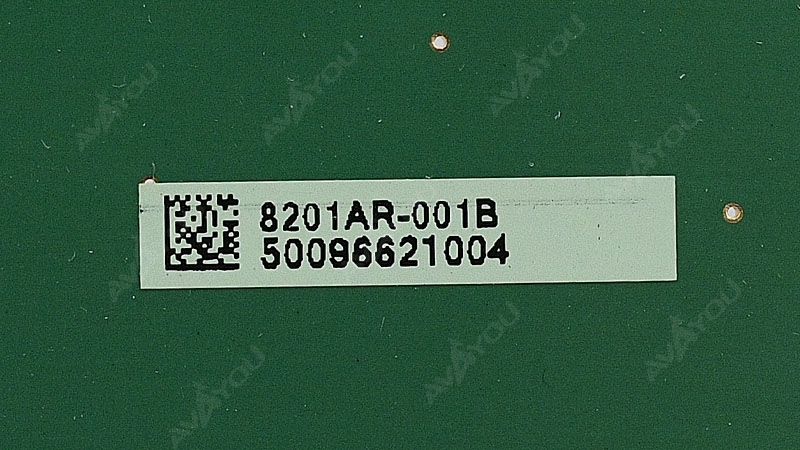

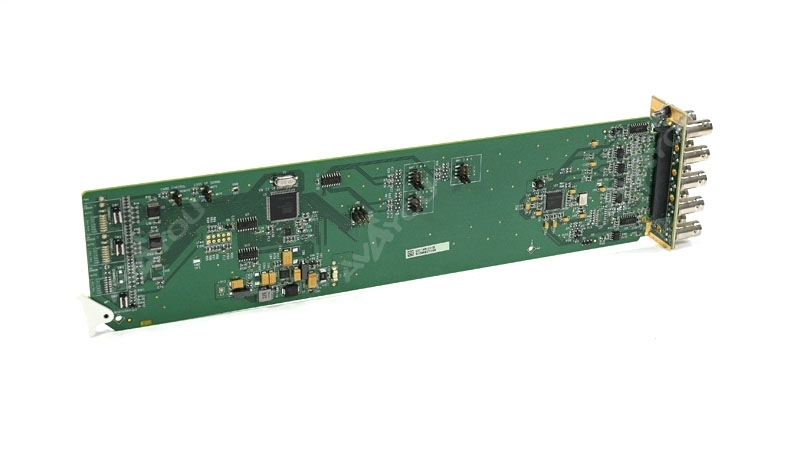

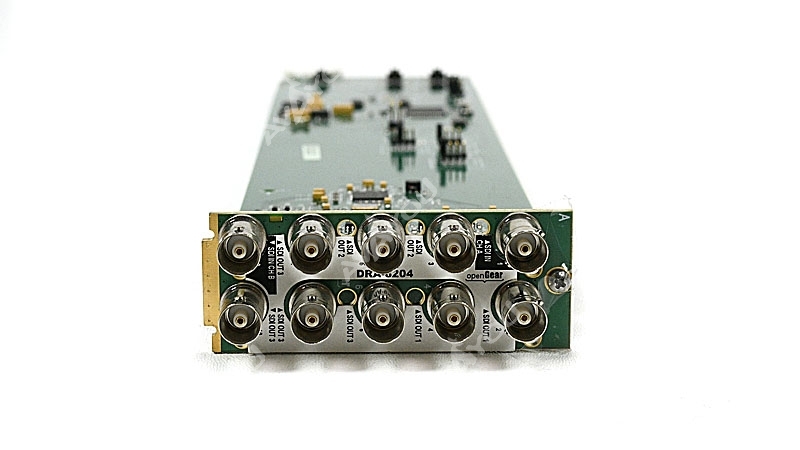

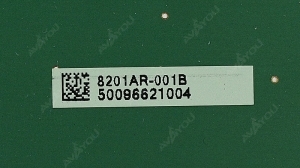

For sale is ONE (1) used DRA-8204 board in very good condition. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped Power supply (adapter) is not included. We test using a spare or bench one.

DRA-8204 is a 2-channel multi-definition SDI distribution amplifier, capable of equalizing and reclocking all common serial digital signals. Each channel of the amplifier equalizes the incoming SDI signal, compensating for up to 300m of cable at 270Mbps and over 120m of cable at 1.485Gbps. The signal is then reclocked, with automatic rate detection for all popular data rates. Each channel is fully independent and can run at different data rates. LED indicators at the front of the card identify the presence of incoming video and the identified signal data rate for each channel independently.

  • 2 independent channels of SDI distribution
  • Flexible channel configurations
  • Equalizes and reclocks all popular SDI signals from 143Mbps to 1.485Gbps
  • Automatic detection of incoming data rate

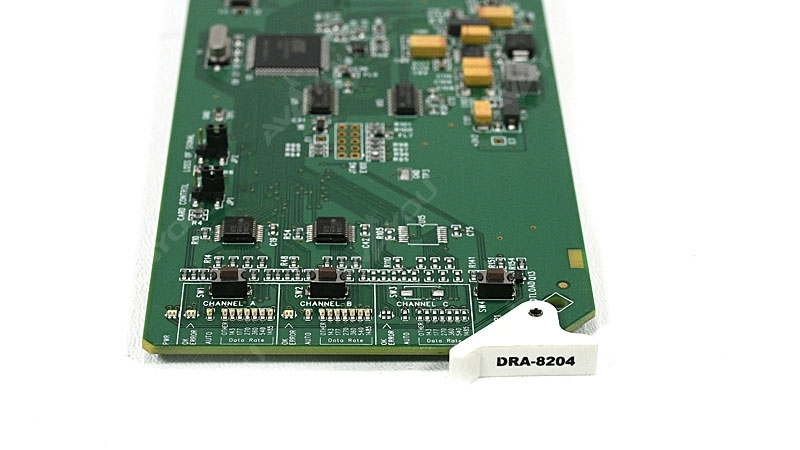

  • LED indicators for signal presence and data rate for each channel
  • Excellent input and output return loss exceeds SMPTE specifications
  • Fits openGear DFR-8300 series frames
