New Miranda GV Densite 2 w/ 8x HDA-1861 HD/SD/ASI Video DA Amp 1x4 +SRP +ETH2N
Add to Cart Add Make an Offer Offer
Fully Functional
New old stock NOS
UPS Ground
2 - 5 days (most US locations)
UPS Expedited/Express
Cost varies (For International Locations)
Local pickup from store
Plus sales tax of 6% (PA State)

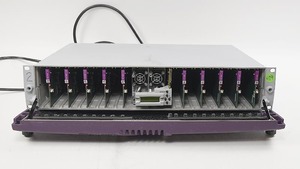

For sale is ONE (1) Miranda frame populated with (8) cards. new open box, never used, still in original manufacture's box. Cards are HDA-1861 Reclocking HD-SDI DA with a single backplane for 1x4 configuration. Frame has both power supplies and frame controller CPU-ETH2. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Power cord(s) are included. If you are looking for any other Miranda modular cards - we probably have them. Thousands of cards available. Check out our inventory.

The 2 RU Densité 2 Frame can simultaneously process 3G, HD, SD and analog video, as well as AES and analog audio. Its front-opening frame features dual hot-swappable power supplies (PSUs) and fans. Modules for the air-cooled frame are also hot swappable, and replacement modules can be configured automatically. All modules, redundant PSUs and fans are monitored to deliver status via GPI or an Ethernet port. Front panel multicolor LEDs provide status reporting, while a controller card allows card adjustments from the front panel.

The HDA-1861 is a reclocked HD/SD SDI DA with up to nine outputs (4 outputs backplane included) and automatic equalization for up to 140 meters (459 feet) using Belden 1694A. Reclocking of the video signals provides an additional level of signal integrity in long cable length applications. The HDA-1861 DA supports both HD-SDI (SMPTE-292M) and SDI (SMPTE-259M-C) and also offers signal presence detection and remote reporting.

  • HD-SDI input
  • Supports HD-SDI (1.485, 1.485/1.001 Gb/s)
  • Supports SD-SDI 270 Mb/s
  • 140m (459 ft.) automatic cable equalization
  • Signal presence detection with remote reporting
  • Reclocked 4 HD-SDI outputs
