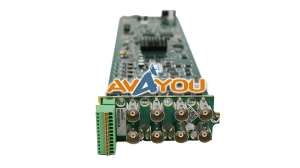

For sale is ONE (1) used Miranda Densite frame with 10x SDA-1102 boards in good condition. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped. If you are looking for any other Miranda modular cards - we probably have them. Thousands of cards available. Check out our inventory.
The SDA-1102 is a serial digital video distribution amplifier supporting a wide variety of compressed and uncompressed serial digital video signals. The SDA-1102 has one input, 9 amplified outputs, signal presence detection and remote reporting. The SDA-1102 provides automatic equalization for up to 350 meters (1148 ft) of Belden 1694A cable at 270Mbps. The SDA-1102 is a non-reclocked amplifier supporting any data rate up to 540 Mbps and is designed to be used in a DENSITÉ frame. A single (for 4 outputs) or double (for 9 outputs) rear connector panel is required.
This card operates with the MSB-1121 Monitoring Switching Bridge which allows the output of any module in the Densité frame to be monitored. Multiple MSB equipped frames may be cascaded to form a large monitoring bus, eliminating the need for dedicated monitoring routers.
