^$7,250.00

Make: Tektronix Tektronix Model: WVR8300 WVR8300 SKU# 7225 #7225

Item Condition

Functional:

Fully Functional

Cosmetic:

Very Good

Shipping options

UPS Ground

2 - 5 days (most US locations)

$63.50

UPS Expedited/Express

Cost varies (For International Locations)

Local pickup from store

Plus sales tax of 6% (PA State)

$0.00

$435.00

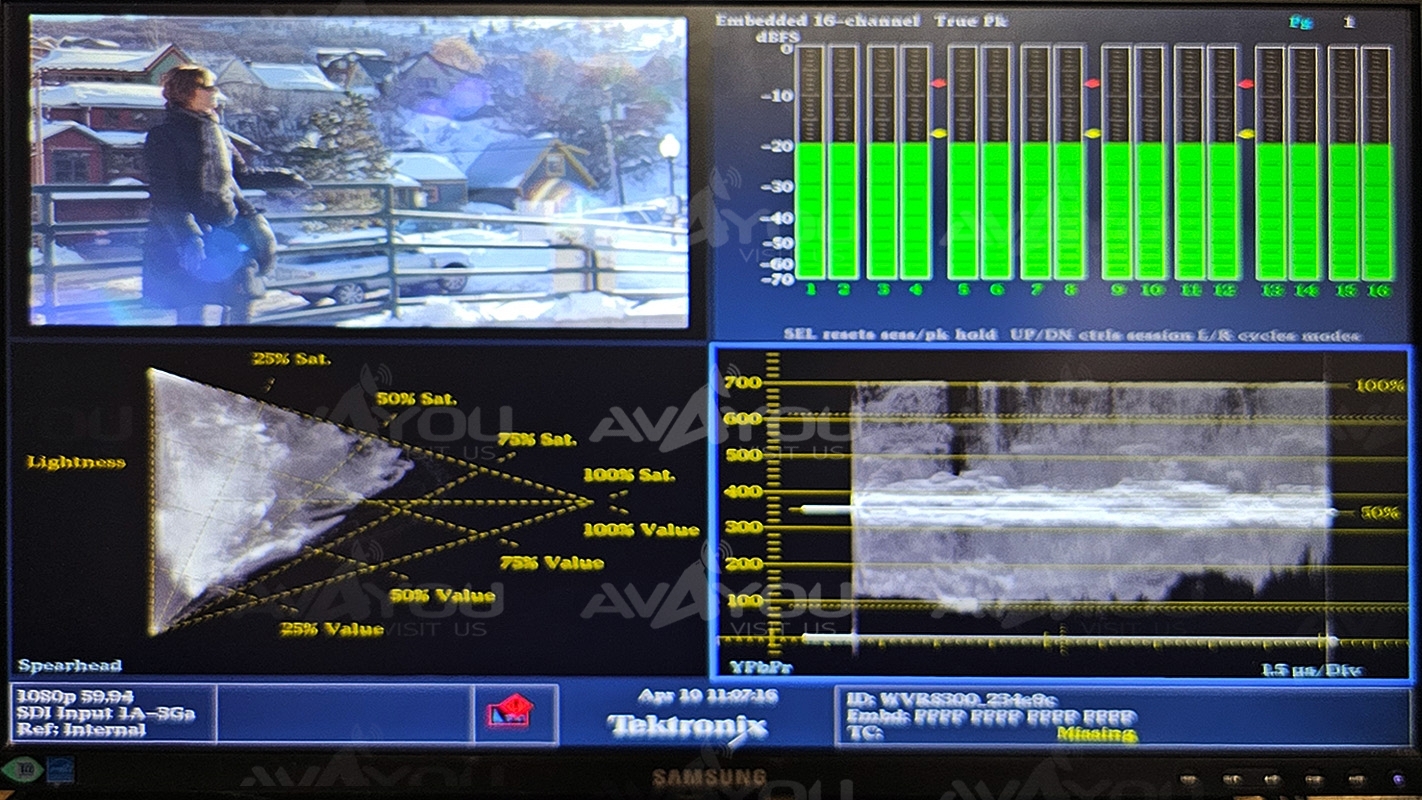

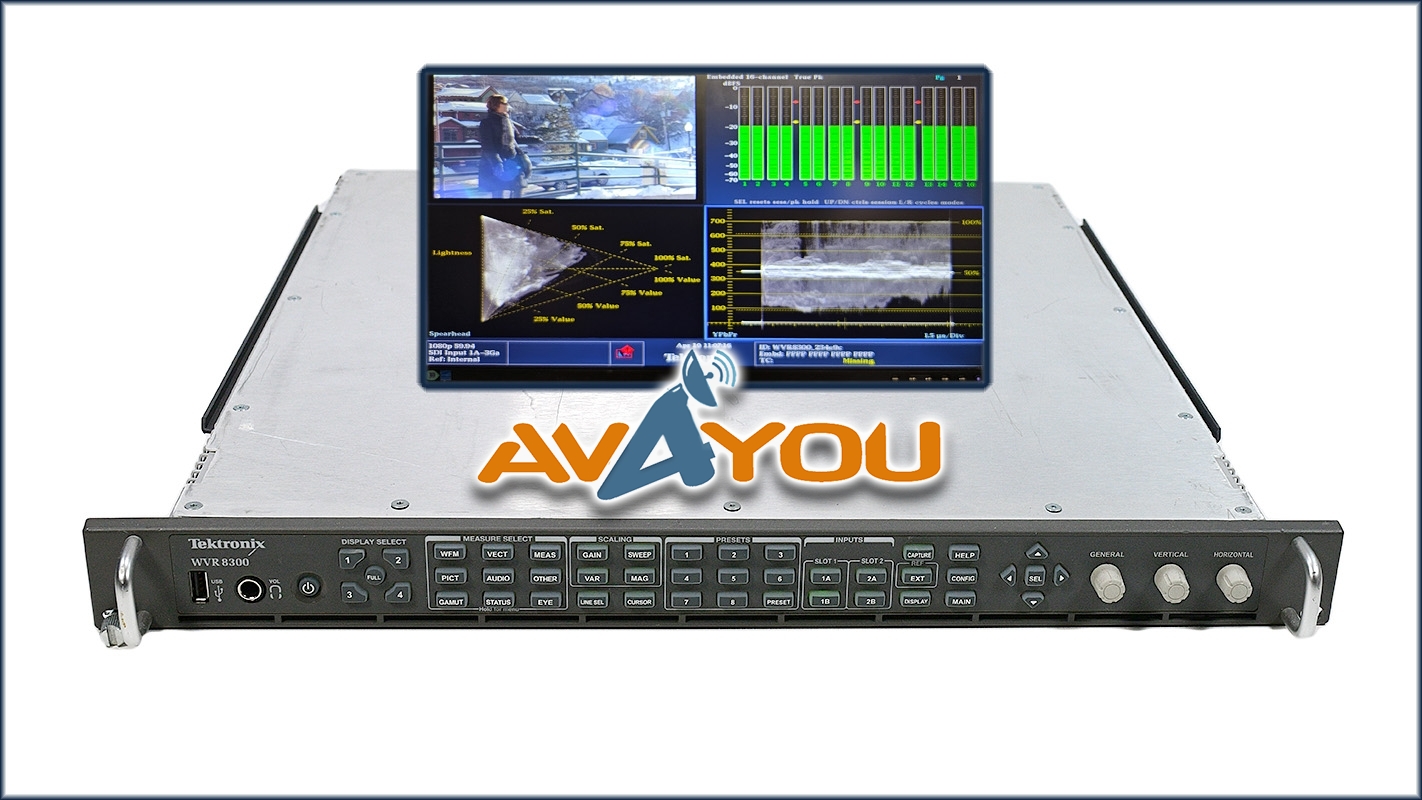

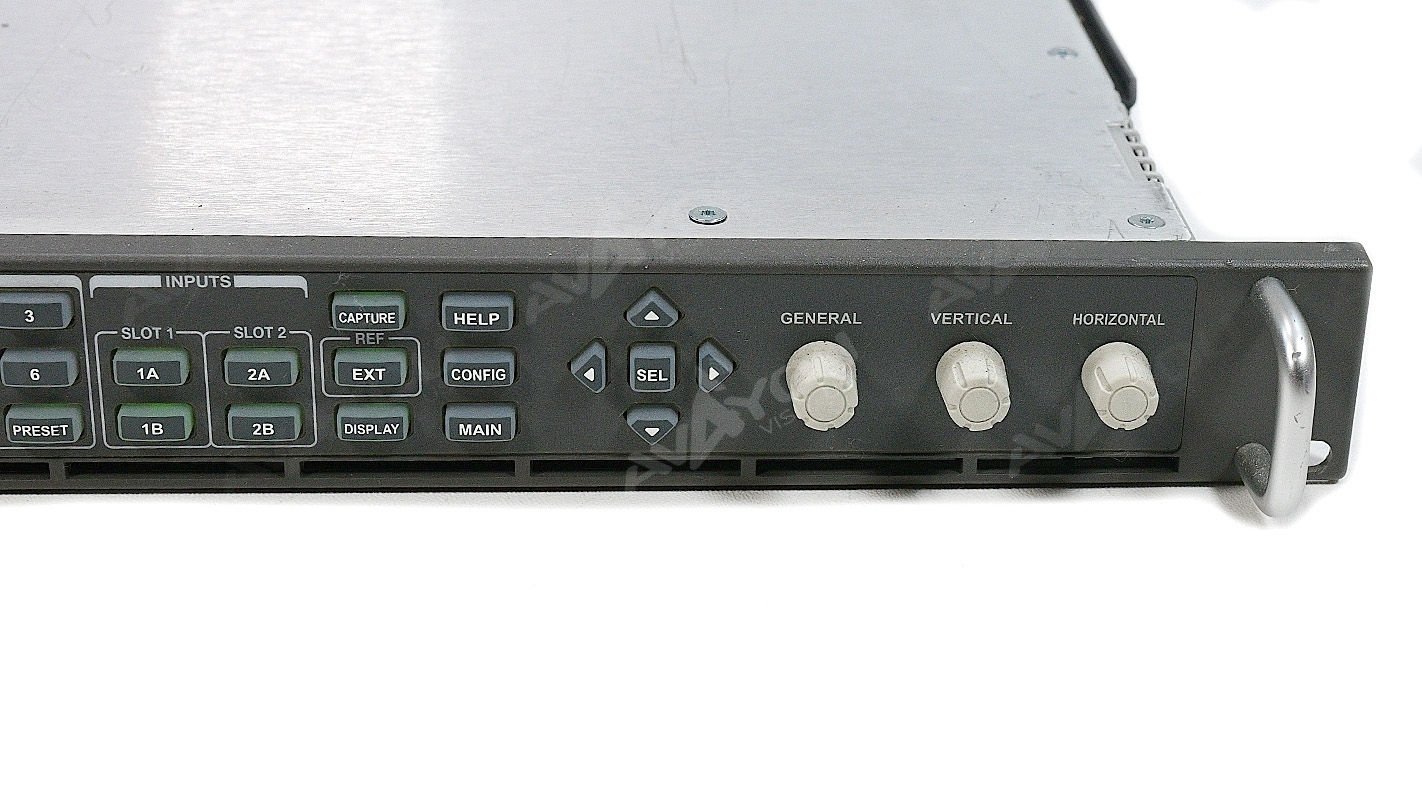

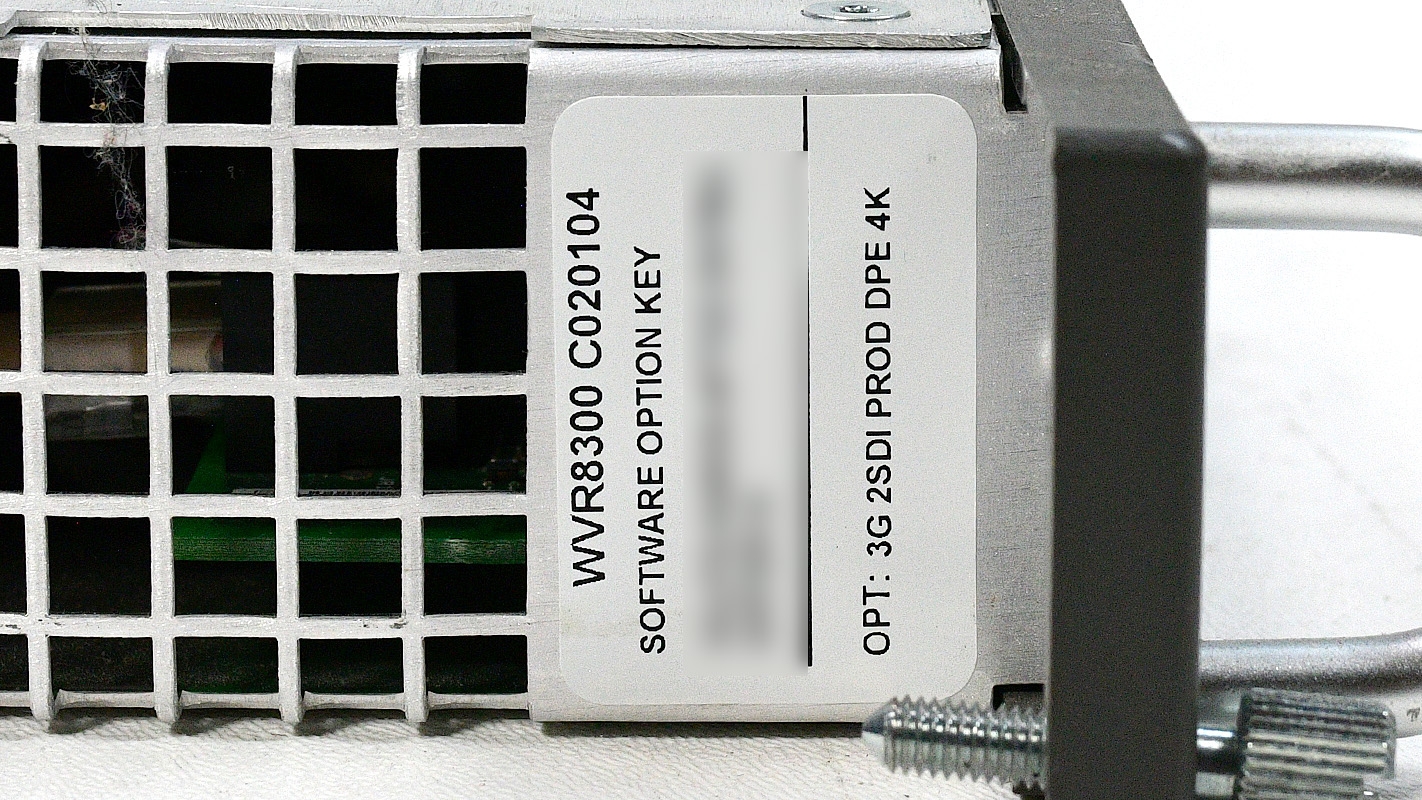

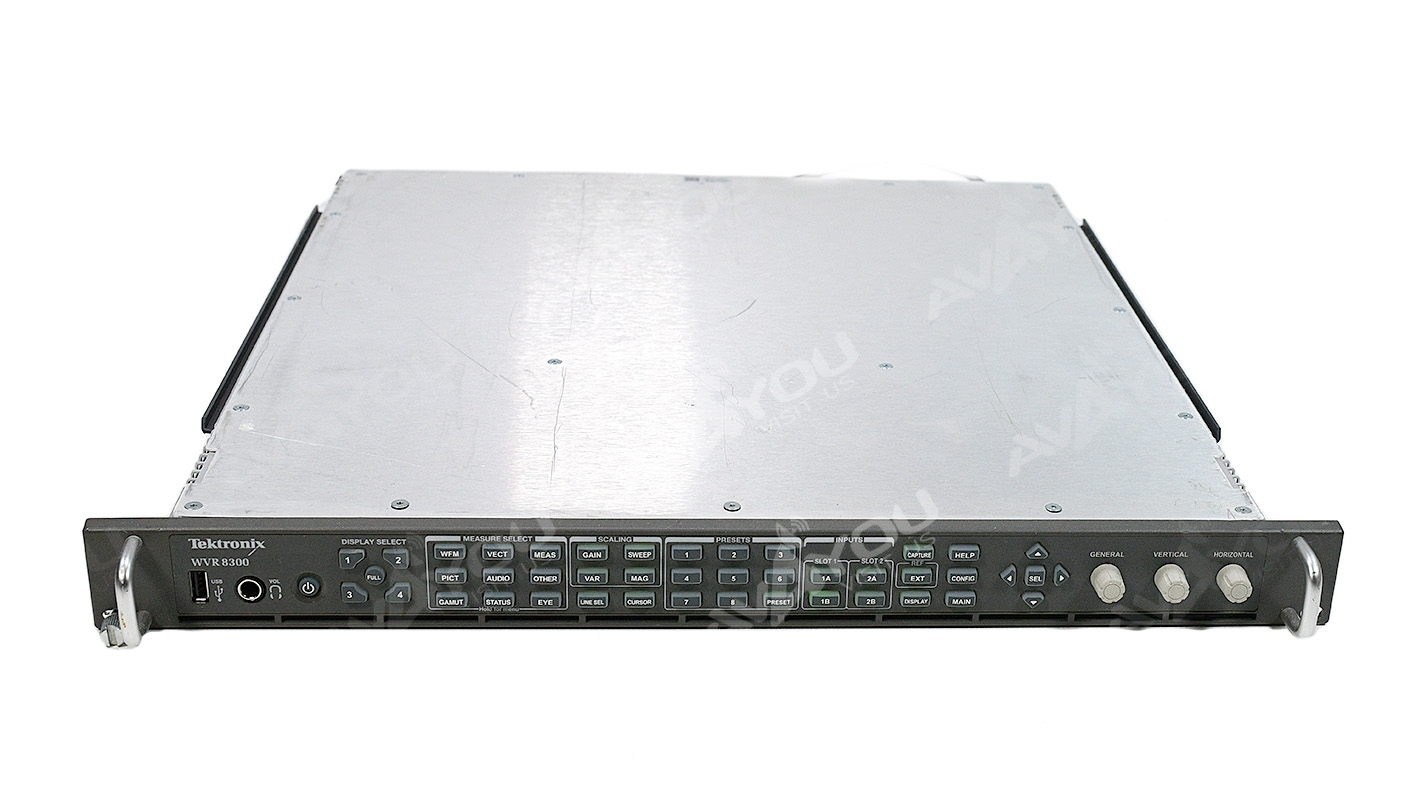

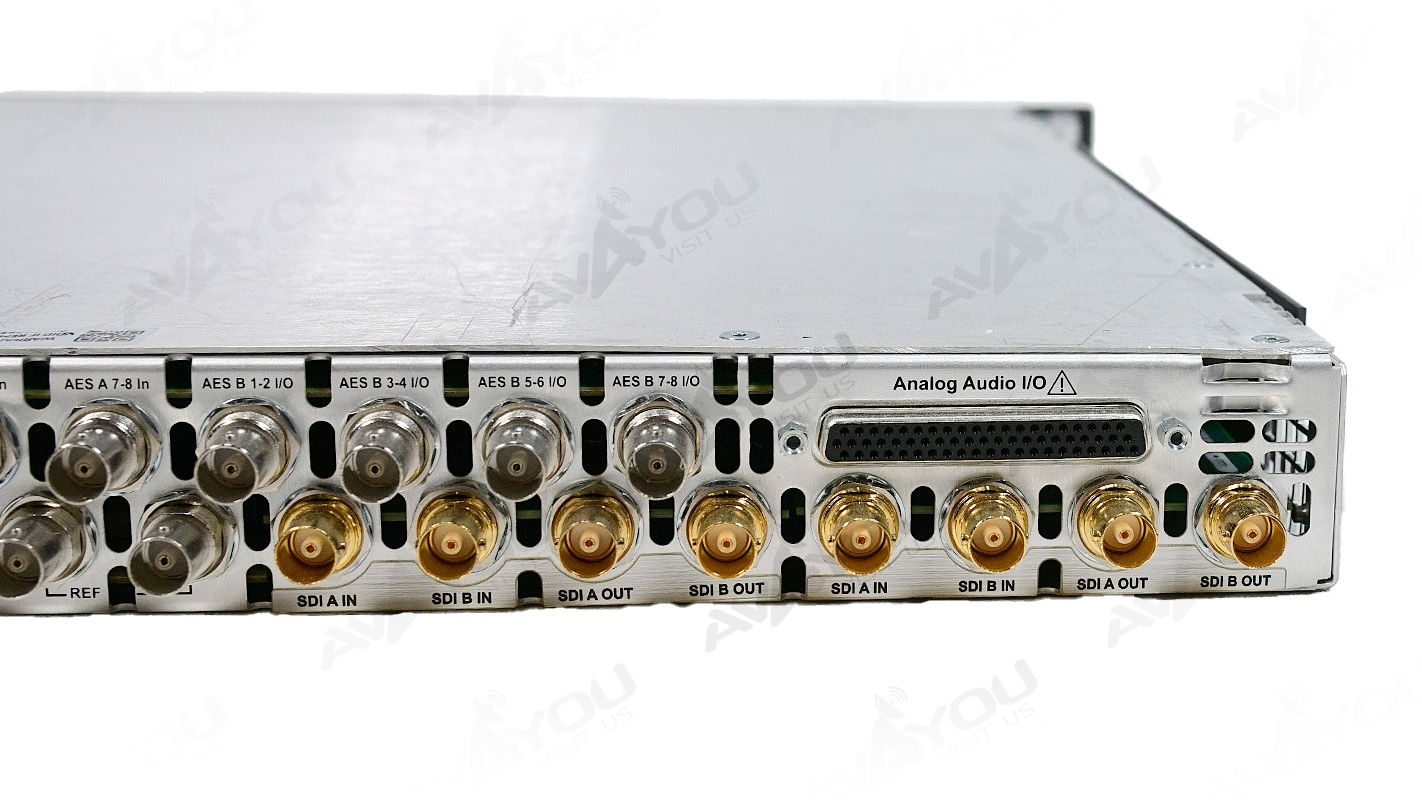

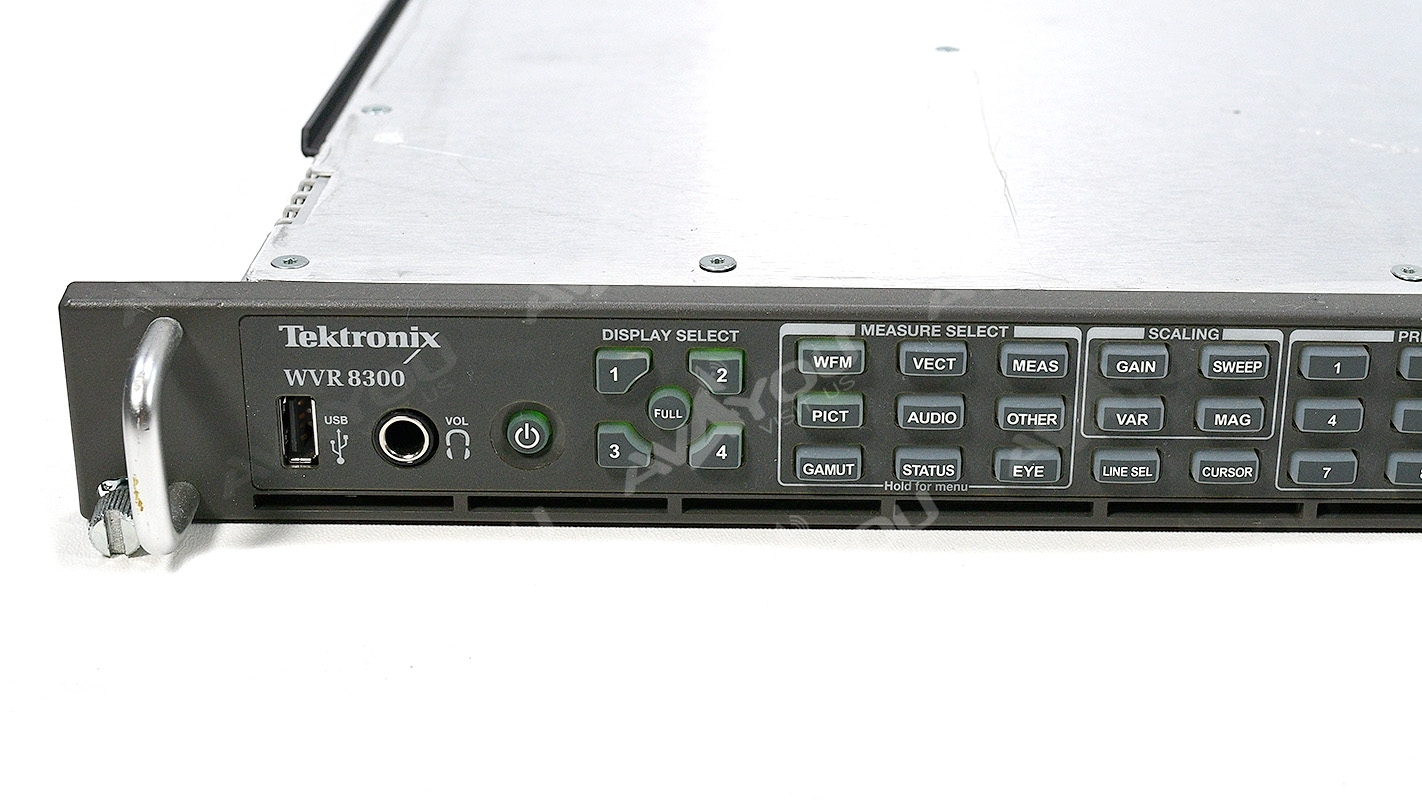

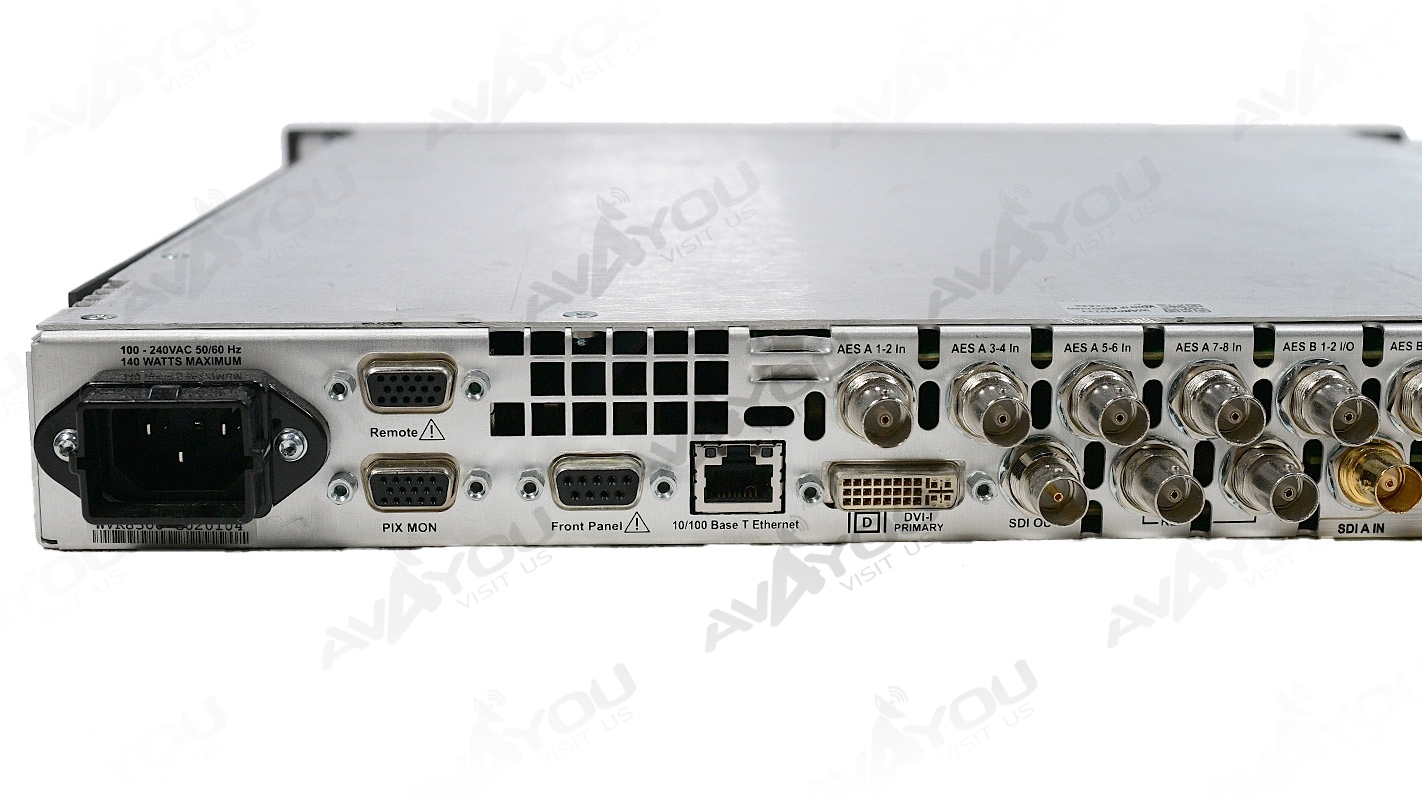

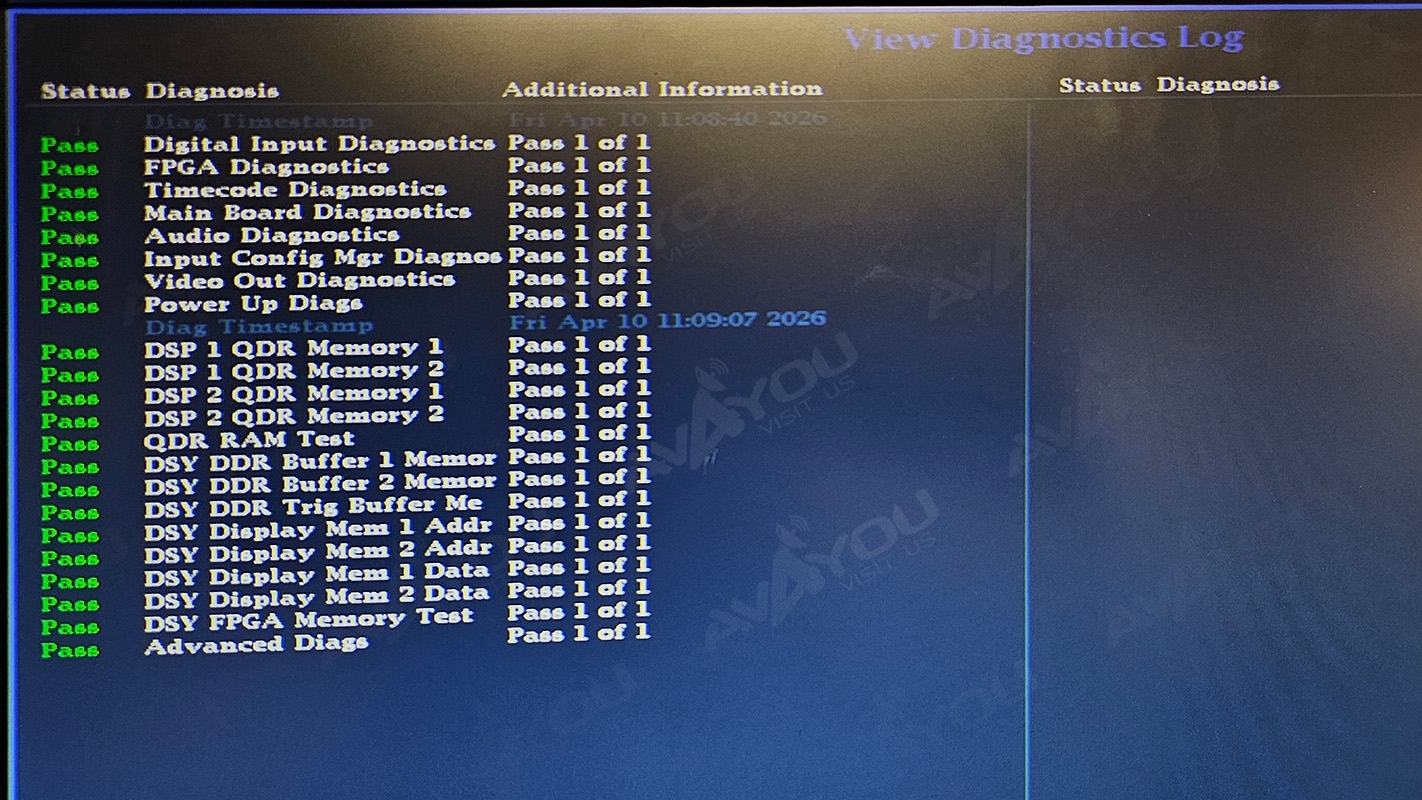

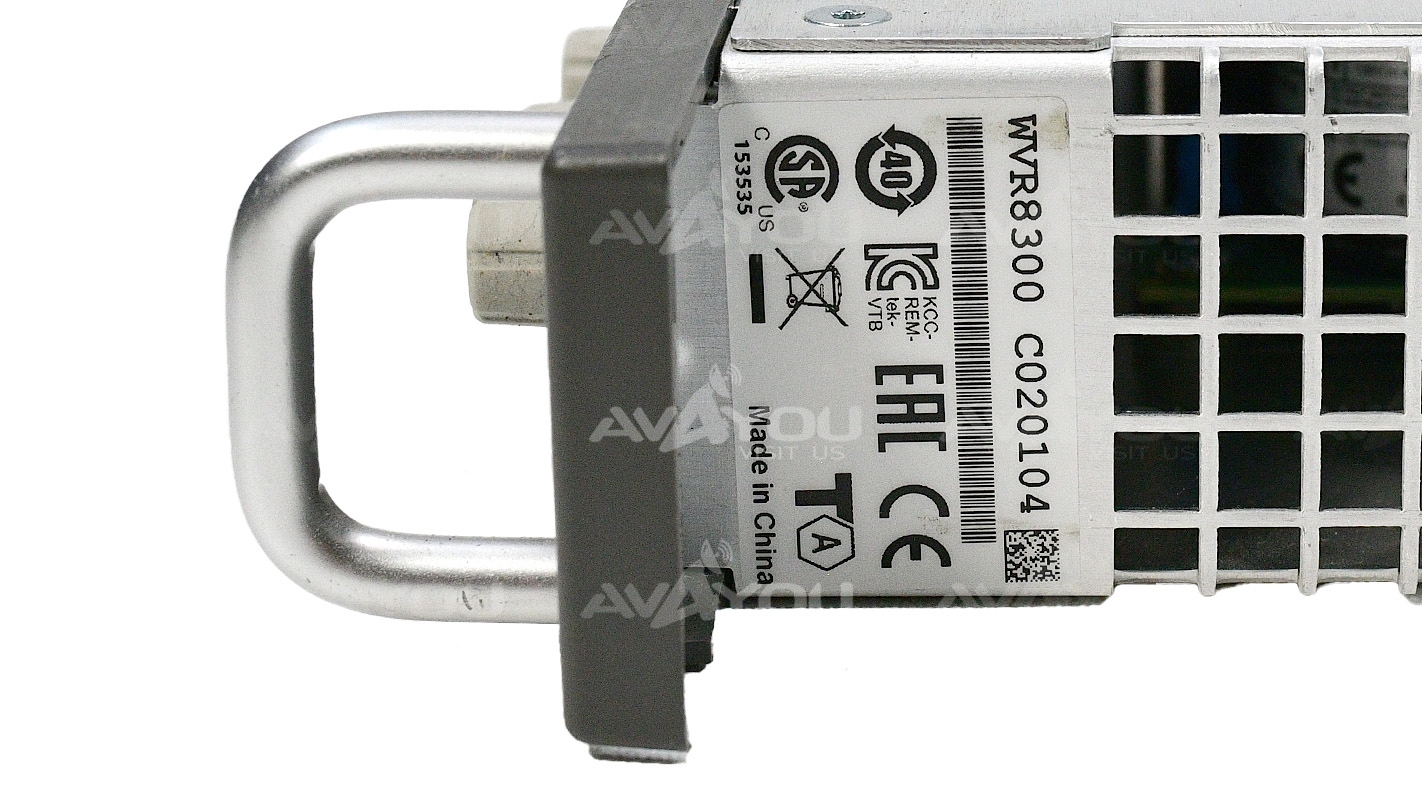

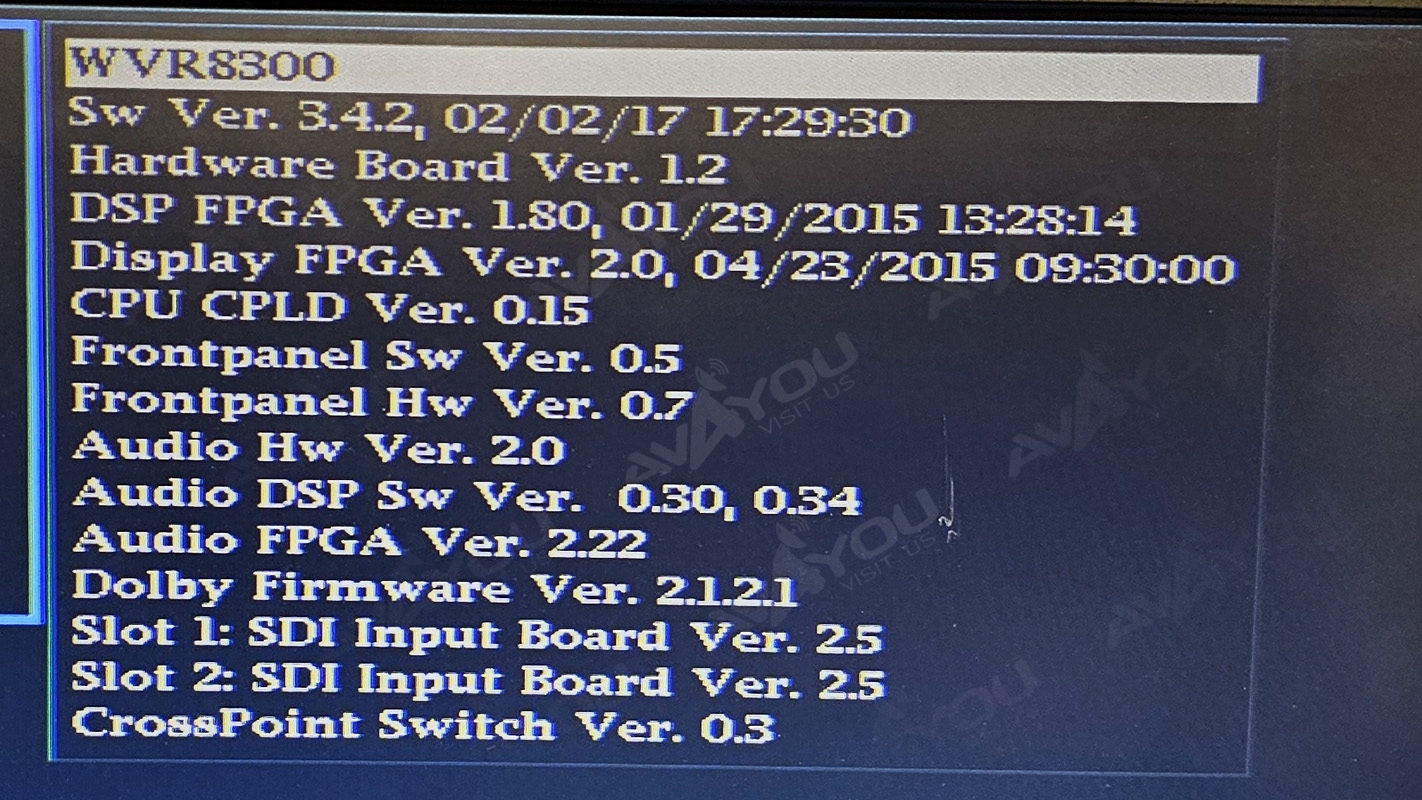

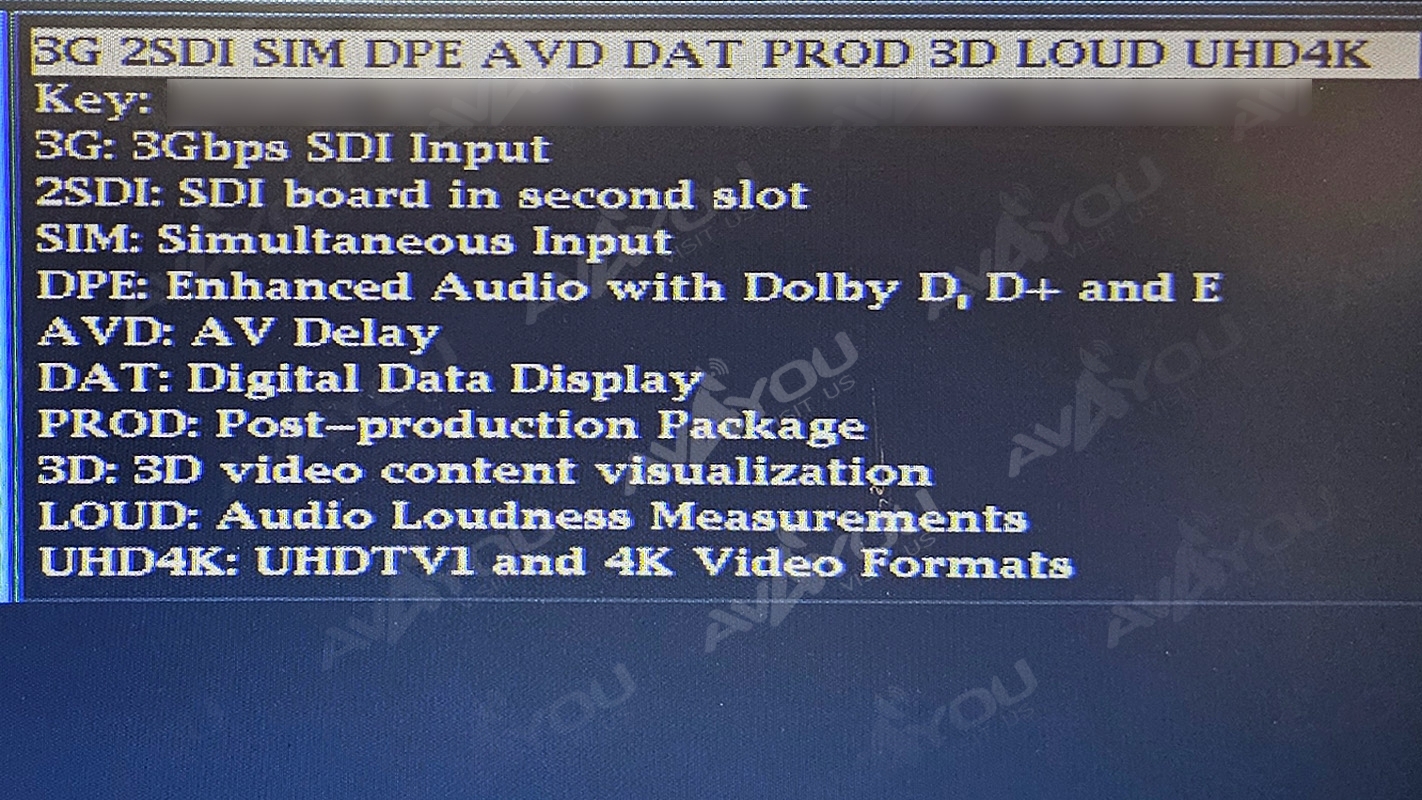

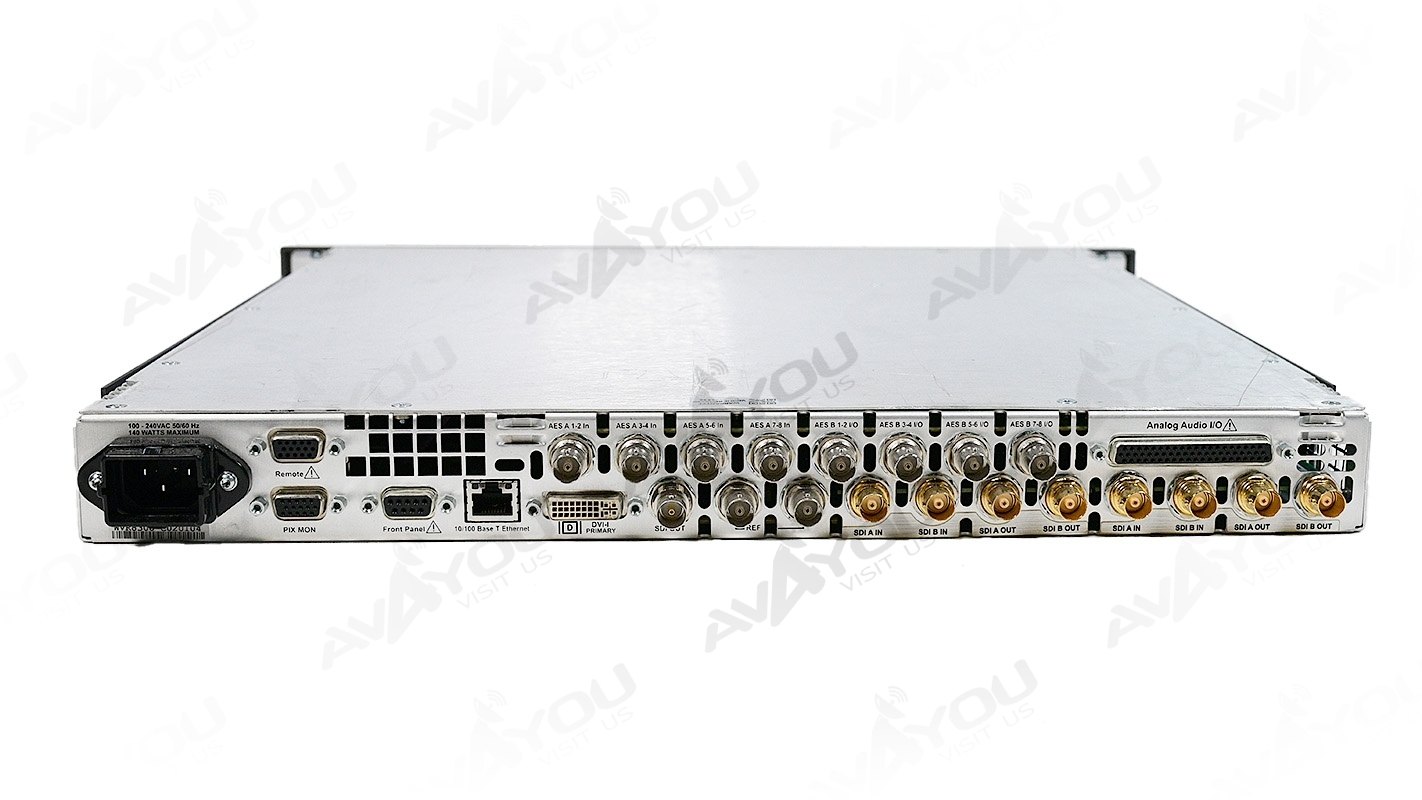

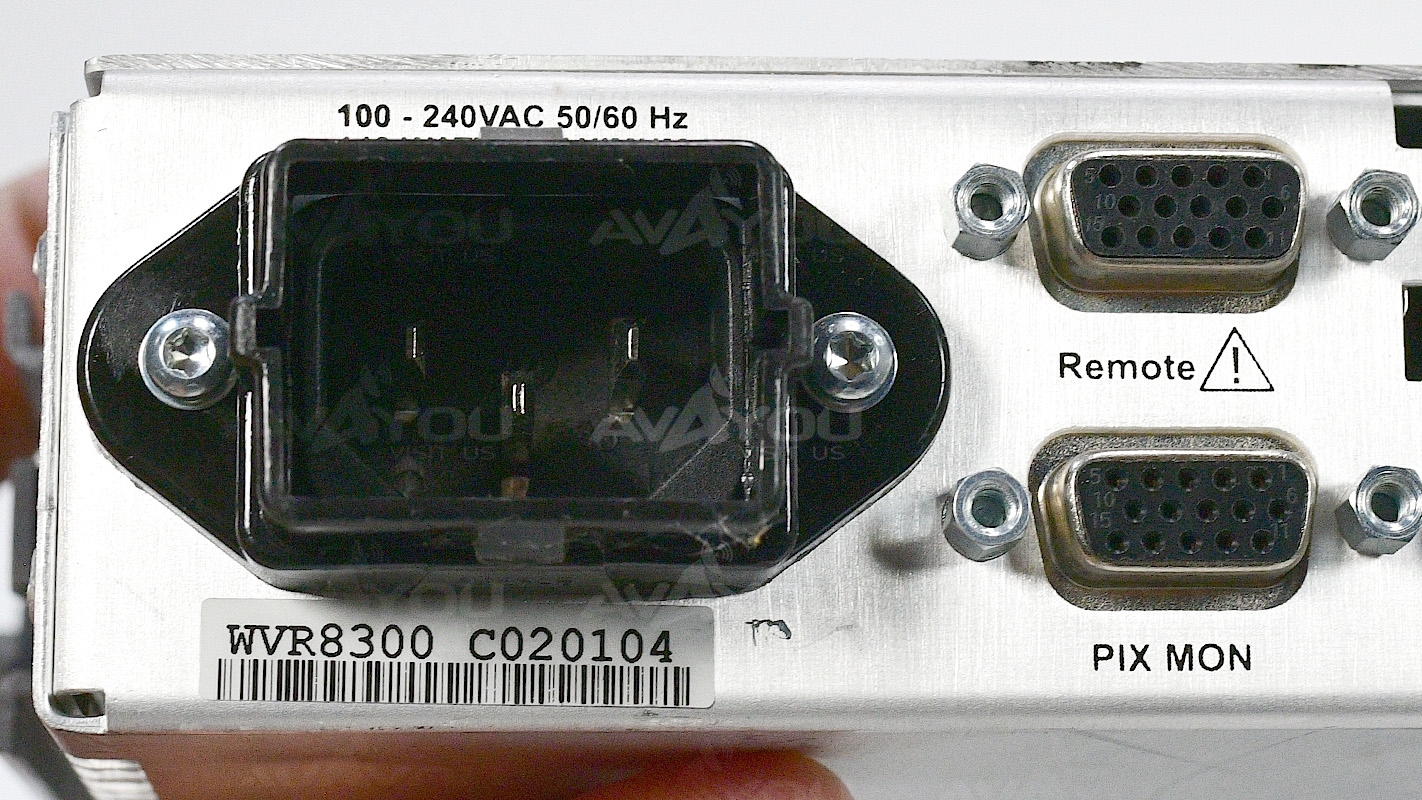

For sale is ONE (1) used 8300 series rasterizer. It is equipped with many options including 3G and UHD4K, see photos. Good working condition with some minor scratches/scuffs. Actual photos are showed. Monitor is not included, showed only for reference while testing the unit. If you are looking for any other Tektronix modular cards - we probably have them. Thousands of cards available. Check out our inventory.

This video/audio/data monitor and analyzer all-in-one platform provides flexible options and field installable upgrades to monitor a diverse variety of video and audio formats. Support for video formats includes 3G-SDI, Dual Link, HD-SDI and composite analog. Support for audio formats includes Dolby E, Dolby Digital Plus, Dolby Digital, AES/EBU, embedded audio and analog audio

WVR8300 come standard with auto-detection of HD/SD-SDI and multiple Dual Link video formats
3G-SDI (Level A and Level B) formats support (Option 3G), Dolby E, Dolby Digital Plus and Dolby Digital audio (Option DPE) decoding and monitoring
Most comprehensive eye pattern measurements including eye amplitude, rise/fall time and overshoot/undershoot measurements as well as Tektronix jitter waveform display (WVR8300 Option PHY)
Comprehensive Dolby metadata decode and display (Option DPE)
Audio Loudness monitoring to ITU-R BS.1770-3 with audio trigger start/stop functions via GPI or Timecode (Option DPE)
Dolby E Guard Band meter with user-defined limits (Option DPE)
Most accurate 3G-SDI jitter waveform display and eye pattern display in the waveform series and patented cable length measurement (WVR8300 Option PHY with Option 3G)
