Miranda GV Densite 3 N w/ 20x HDA-1931 Dual 3G/HD/SD SDI Distribution Amplifier
Add to Cart Add Make an Offer Offer
Fully Functional
Very Good
UPS Ground
2 - 5 days (most US locations)
UPS Expedited/Express
Cost varies (For International Locations)
Local pickup from store
Plus sales tax of 6% (PA State)

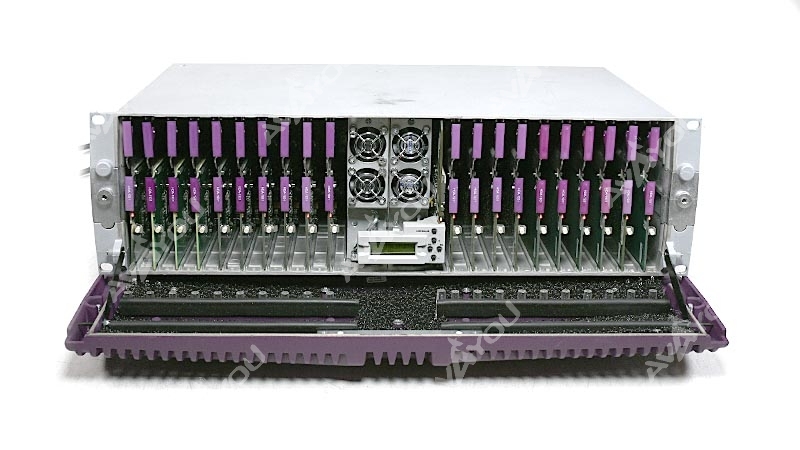

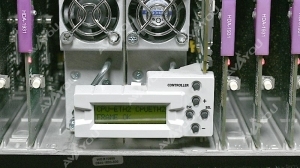

For sale is ONE (1) used Densite 3 frame with 20x Dual 3G-SDI DA cards. 2x (1x3) . All cards come with their corresponding backplanes. Newer ETH controller and 2x power supplies included. Actual photos are showed. If you are looking for any other Miranda modular cards - we probably have them. Thousands of cards available. Check out our inventory.

The HDA-1931 and HDA-3931 are dual 3G/HD/SD SDI video distribution amplifiers (DAs) that support a variety of compressed and uncompressed serial digital video signals. They provide up to eight reclocked outputs with automatic equalization for up to 150 meters (492 feet) of cable using Belden 1694A at 1.5Gb/s and up to 90 meters (295 feet) at 3 Gb/s, and offer fiber connectivity, making it ideal for longer cable lengths.

The HDA-1931 and HDA-3931 share the same feature set and specifications, except that HDA-1931 is a 2 RU card built for the Densité 2 frame while the HDA-3931 is a 3 RU card made for the Densité 3 frame series. Each product has its specific rears as illustrated in the Key Features section and in the ordering information.

  • Two 3G/HD/SD SDI inputs
  • Up to 6 3G/HD/SD SDI outputs + fiber
  • Supports bit rates all the way up to 3Gb/s
  • Backup input available in single channel mode
  • Automatic format detection and cable equalization
