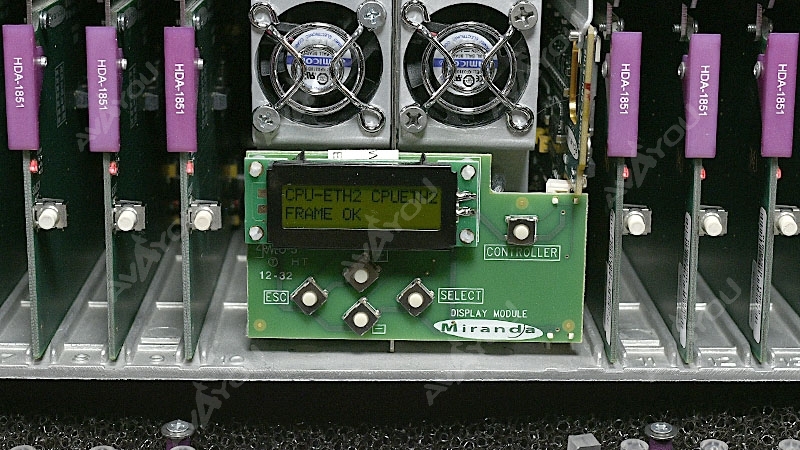

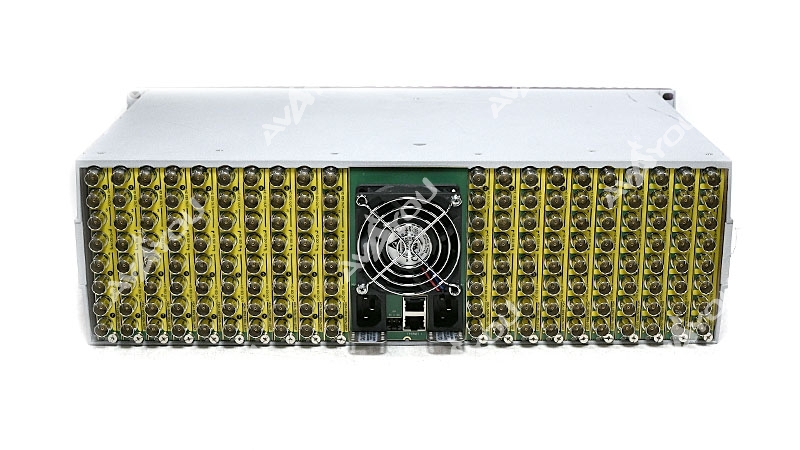

For sale is ONE (1) Miranda 3 frame. Comes with 2x power supplies, ETH2 frame controller and 20x 1851 DA cards with EQ. Very good condition with some minor scratches on a chassis. Actual photos are showed. If you are looking for any other Miranda modular cards - we probably have them. Thousands of cards available. Check out our inventory.

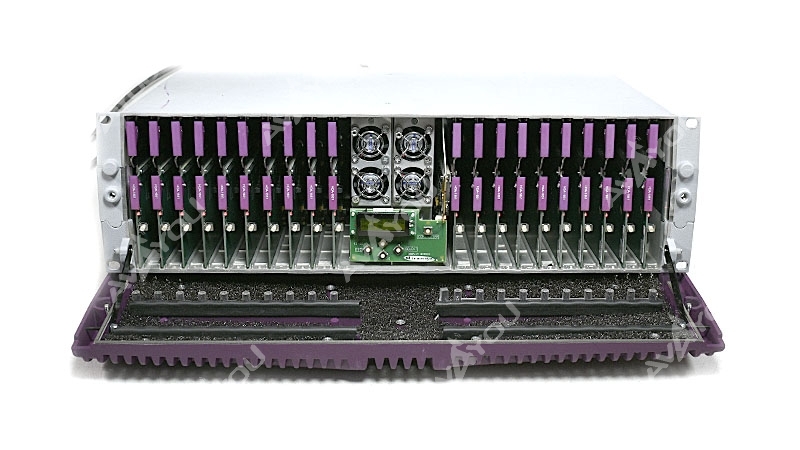

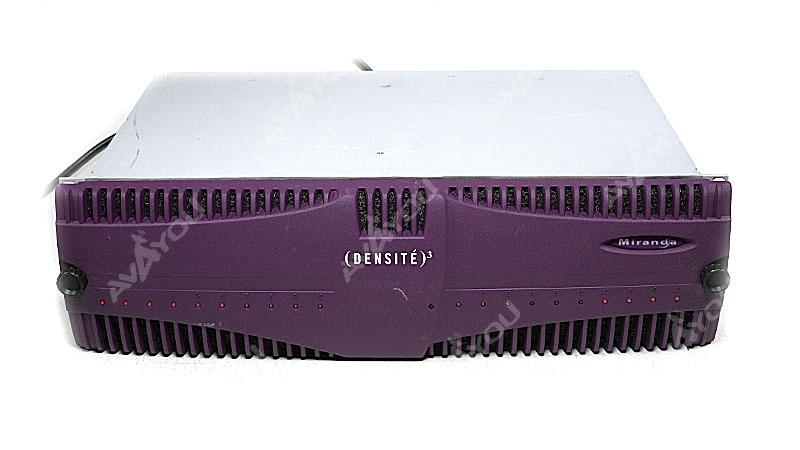

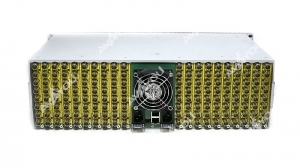

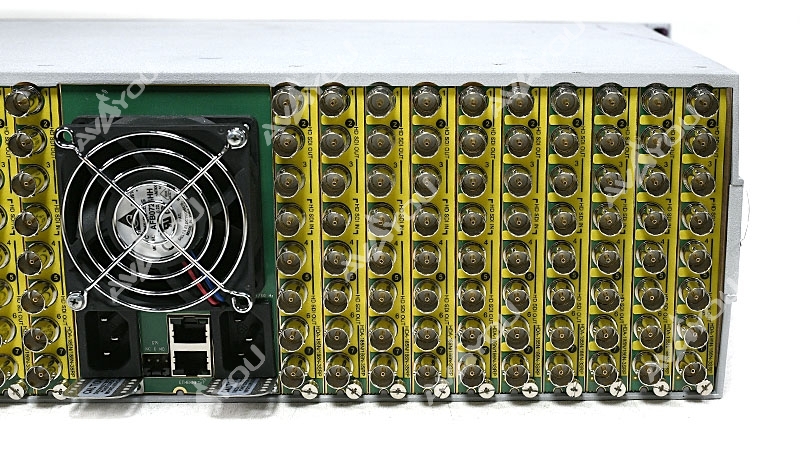

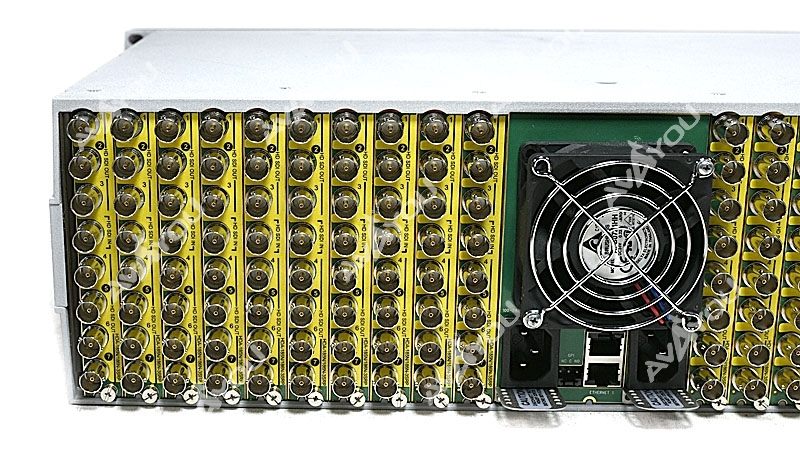

The 3 RU Densité 3 Frame can simultaneously process 3G, HD, SD and analog video, as well as AES and analog audio. Its front-opening frame features dual hot-swappable power supplies (PSUs) and fans. Modules for the air-cooled frame are also hot swappable, and replacement modules can be configured automatically. All modules, redundant PSUs and fans are monitored to deliver status via GPI or an Ethernet port. Front panel LEDs provide status reporting, while a controller card allows card adjustments from the front panel.

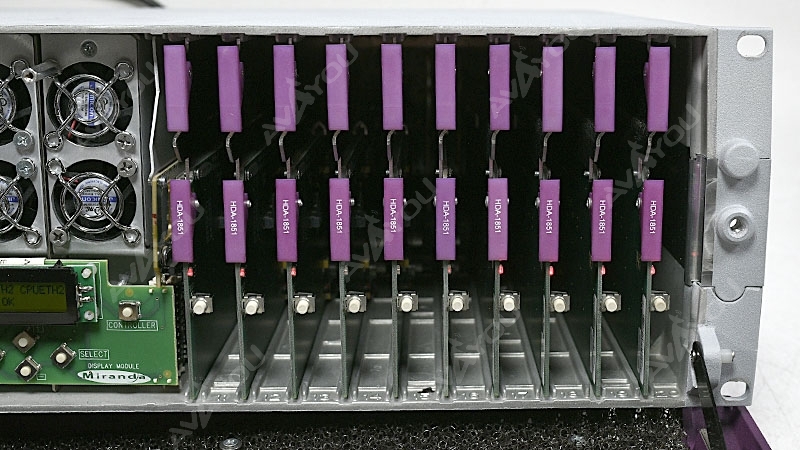

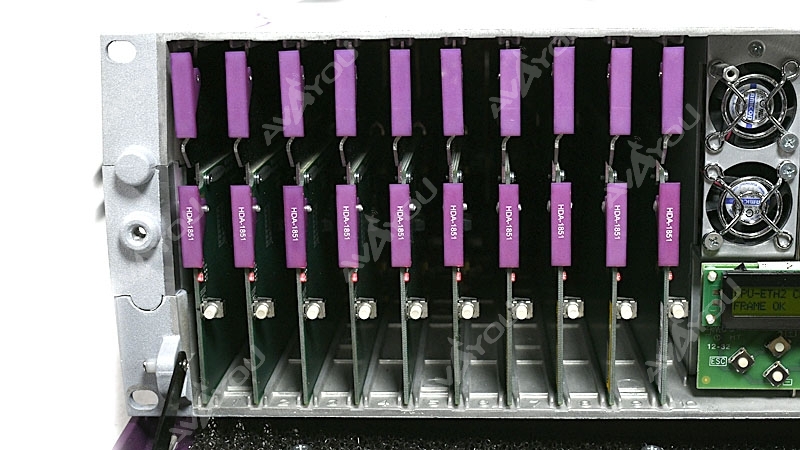

The HDA-1851 is an HD/SD/ASI DA with up to nine outputs and automatic equalization for up to 140 meters (459 feet) using Belden 1694A. The HDA-1851 DA supports both HD-SDI (SMPTE-292M) and SDI (SMPTE-259M-C). It also offers signal presence detection and remote reporting. The card's multiformat features make it ideal for applications where HD and SD signals may co-exist.
